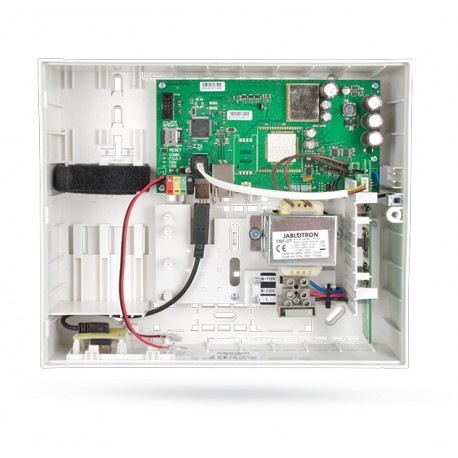

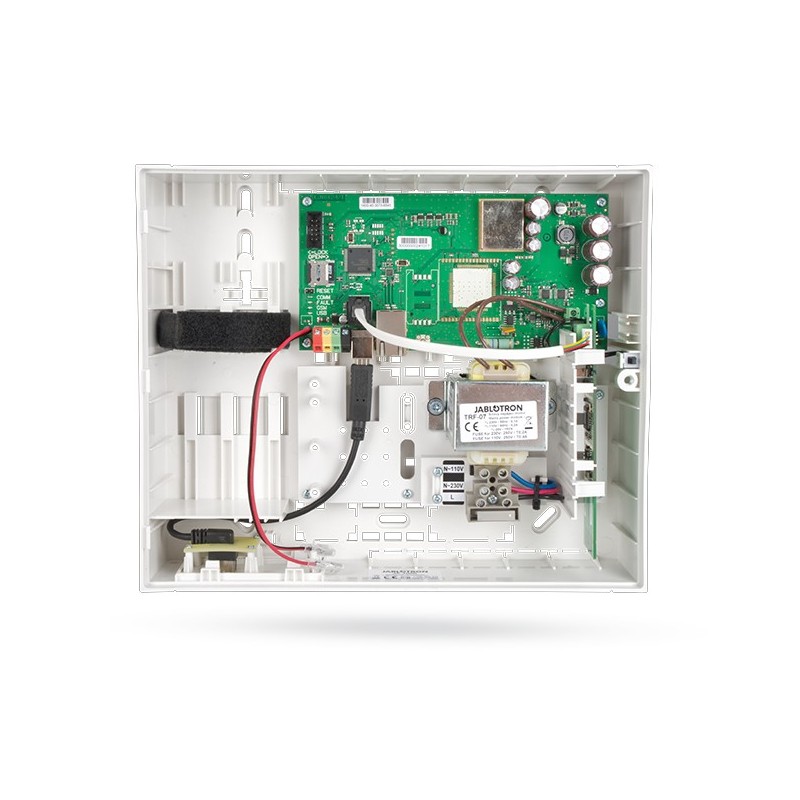

Control panel JA-14KR

JA-14KR is the core control panel of the JABLOTRON JA‑10 range, intended for protection of apartments, family homes and small commercial premises. The kit contains the control PCB with a preinstalled JA‑111R radio module and an integrated LAN communicator for cloud connectivity and ARC reporting.

The panel supports mixed BUS and wireless peripherals — up to 32 devices in total. It provides 16 + 3 user codes, up to 4 independent sections (areas), 4 programmable PG outputs and 10 independent calendar schedules.

Event transmission is handled via the built‑in LAN communicator; optional communicators JA‑190Y (GSM/GPRS) and JA‑190X (PSTN) are available for redundancy. The unit can report to alarm receiving centres (ARCs) and supports common alarm protocols including JABLO IP, SIA IP, Contact ID and JABLO SMS.

• Up to 32 wireless or BUS devices
• Up to 16 + 3 user codes
• Up to 4 sections
• Up to 4 programmable PG outputs
• 10 independent schedules
• SMS and voice reporting to up to 8 users
• Maximum of 3 JA‑111R radio modules supported

The panel includes a microSD slot (recommended 4 GB or larger) for event and image storage, a USB service connector and BUS terminals. Recommended backup battery: SA‑214/2.6 Ah; maximum BUS cable length 500 m.

Dimensions: 268 × 224 × 83 mm; weight approx. 1.45 kg; operating temperature ‑10 °C to +40 °C. System configuration and advanced settings are performed with N‑Link software; user control and remote access are provided through the MyJABLOTRON application.
