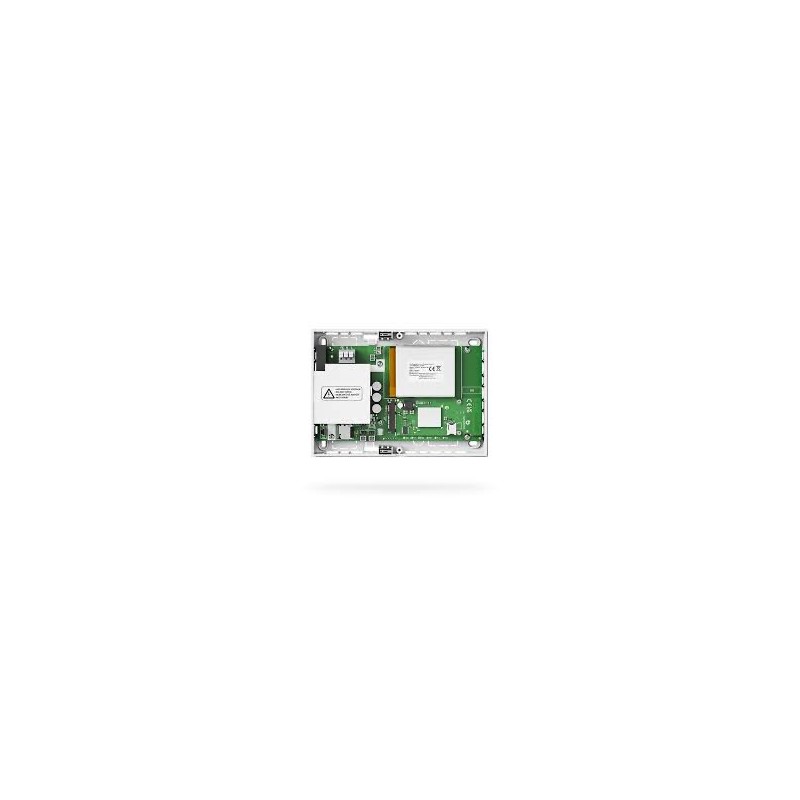

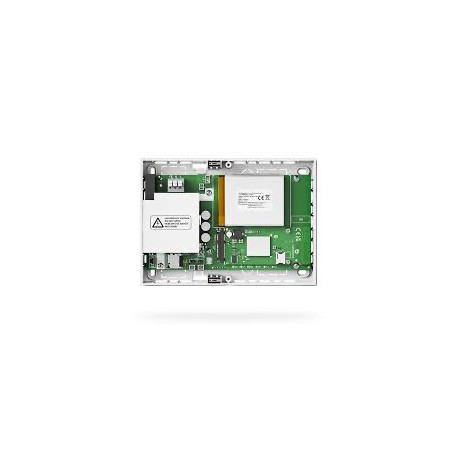

JA-152KRY Control panel with radio module and 4G communicator LITE

Overview

JA-152KRY is a Mercury control panel integrating a radio module and a 4G LITE communicator. It is designed for reliable wireless intrusion and fire signalling with remote management via MyCOMPANY and full compatibility with Jablotron peripherals.

Main features

• Support for up to 31 wireless devices + 31 remote controls
• Up to 32 users and up to 4 sections (areas)
• Up to 2 programmable PG outputs
• Built-in acoustic indicator 80 dB/m; can act as a wireless doorbell with JA-159J
• Event memory approx. 7 million records with timestamps and sources

GSM / communicator details

The integrated 4G LITE communicator provides alarm transmission and server connectivity. Module parameters: module supply 8–15 V DC (from the control panel), average current ≈ 9 mA (varies with signal), and peak current up to 720 mA. Supported bands:

• 2G (GSM/EDGE): 900 / 1800 MHz
• 3G: 900 / 2100 MHz (B8, B1)
• 4G (LTE): 800 / 900 / 1800 / 2100 / 2600 MHz (B20, B8, B3, B1, B7)

Technical specifications & compliance

Control panel power supply: ~110–230 V / 50–60 Hz, max. 0.28 A with F1.6 A/250 V fuse. Electrical power max. 23 VA / 0.1 A. Backup battery: 3.7 V, 5000 mAh Li‑polymer; low battery indication ≤3.5 V; max. recharge to 80% ≈ 72 h. Dimensions: 182 x 132 x 58 mm; weight with battery 510 g (without 430 g).

The JA‑111R radio module operates at 868.1 MHz, <25 mW, GFSK <80 kHz. The unit is rated Security Grade 2 / Environment Grade II and complies with EN50131‑1, EN50131‑3, EN50131‑6, EN50131‑5‑3, EN50131‑10, EN50136‑1, EN50136‑2. EMC and safety standards: EN 50130‑4, EN 55032, ETSI EN 301 489‑1, ETSI EN 301 489‑3, EN IEC 62368‑1. Certification: TREZOR TEST (no. 3025).

Operation and administration

Behaviour on communication loss, code entry policies (alarm after 10 wrong code attempts with 10‑minute lockout), and section setting blocks are configurable per profile. Supported ATS classes: SP2–SP5; SPT type Z. Alarm transmission via JABLO IP and ANSI SIA DC‑09 with AES encryption (min. 128‑bit).

Use cases and installation

Suitable for residential and small commercial installations requiring a robust wireless alarm system with remote management and ARC connectivity. Configuration and commissioning must be carried out by a trained, authorized Jablotron technician.
