> >>>>JAB Sabirnička četverosegmentna tipkovnica sa zaslonom i NFC čitačem JA-115E-NFC

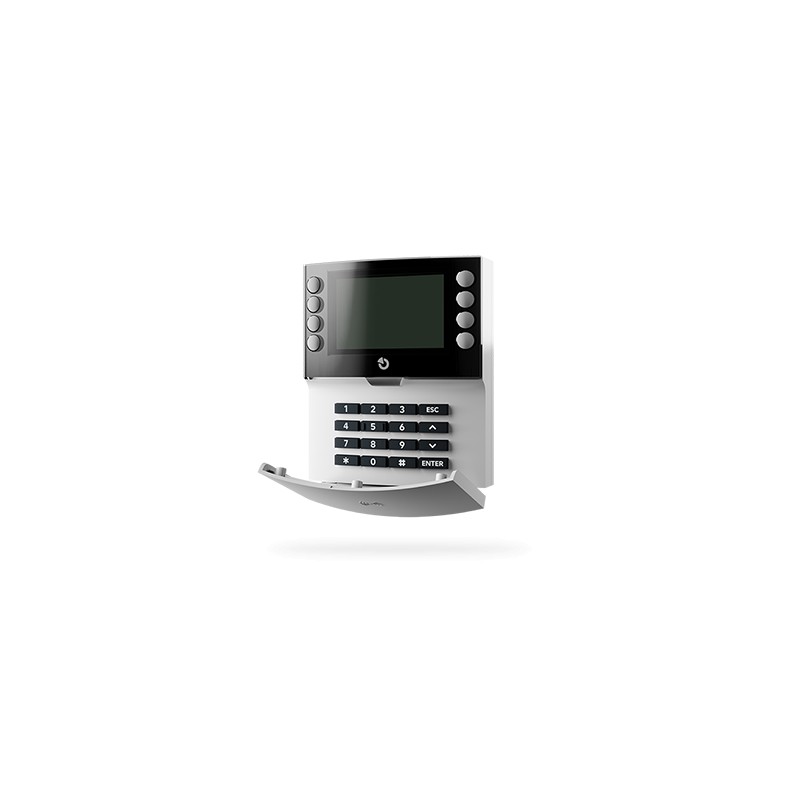

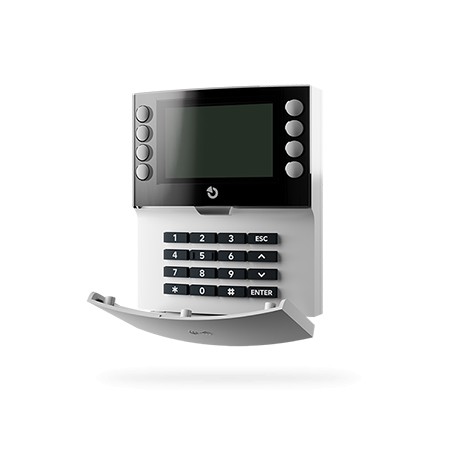

New JAB JA-115E-NFC bus four-segment keypad with LCD display and built-in 13.56 MHz NFC for JABLOTRON 100+ and Mercury. View larger

JAB Sabirnička četverosegmentna tipkovnica sa zaslonom i NFC čitačem JA-115E-NFC

JA-115E-NFC

New product

The JA-115E-NFC is a BUS four-segment keypad with LCD and integrated NFC reader (13.56 MHz) for JABLOTRON 100+ and Mercury systems. Provides clear status indication, segment control and card/tag authentication. Powered from BUS 12 V (8–15 V).

More details

More info

JA-115E-NFC is a BUS four-segment keypad with an LCD display and an integrated NFC reader, serving as a compact user interface for JABLOTRON 100+ and Mercury alarm systems. The four segments use a traffic‑light logic for immediate visual status and simplified control of common functions.

Segment labels are shown on the two-line LCD; the bottom line can display date/time or the temperature of a selected detector when the segment is unused. The Import button copies keypad settings to another keypad of the same type.

Access authorization is handled by the integrated 13.56 MHz NFC (MIFARE) reader for secure card/tag management. Communication and power are supplied via the control panel BUS.

Installation must be carried out by a trained technician with a valid certificate issued by an authorised distributor. Surface mounting is possible with the JA-105PL plate; note that using this plate may void the device's declared security rating.

  • Power: from control panel BUS 12 V DC (8–15 V)
  • Quiescent / Max current: 9 mA / 47 mA
  • NFC frequency: 13.56 MHz (MIFARE)
  • Dimensions / Weight: 110 × 136 × 33 mm; 285 g
  • Classification: Security grade 2 / Environmental class II
  • Operating range: -10 °C to +40 °C; 75 % RH (non‑condensing)

The JA-115E-NFC supports zone control, event viewing, user management and peripheral blocking according to system configuration. It is compatible with JA-102K, JA-103K and JA-107K control panels. For correct setup and compliance with certifications, installation by an authorised installer is recommended.
