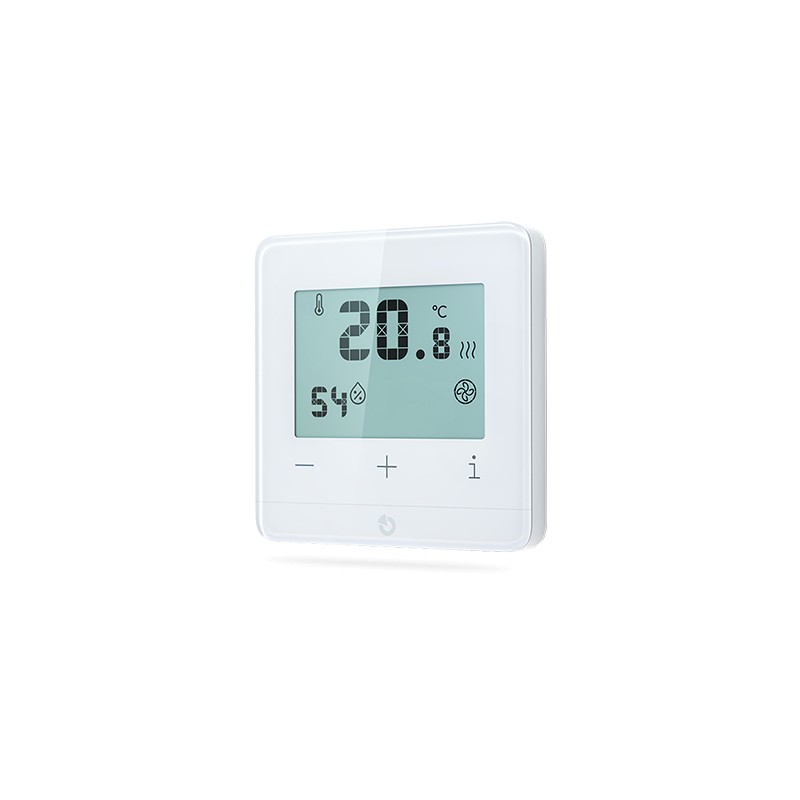

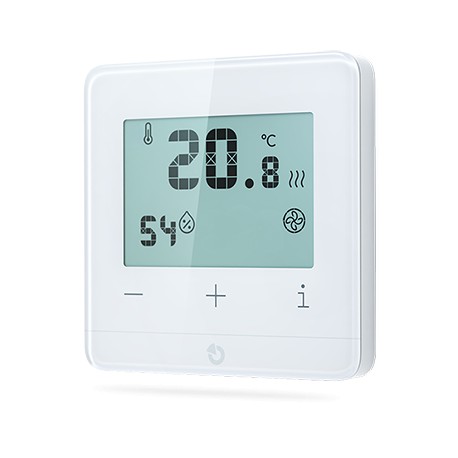

JAB BUS room thermostat JB-111TP

JB-111TP is a BUS room thermostat designed for integration with the JABLOTRON 100+ security system to provide zone temperature and ventilation control. It switches heating, cooling and ventilation by controlling PG outputs on the control panel.

The device measures air temperature and relative humidity; when an external floor sensor JB-TS-NTC10K is connected it provides a floor-temperature limit function (the thermostat uses air temperature for normal regulation).

User settings such as temperature schedules, hysteresis and display preferences are adjustable locally via capacitive buttons or remotely through MyJABLOTRON 2. The system can generate temperature and humidity graphs and apply energy-saving scenarios in response to alarm-system events (e.g., economy mode when nobody is present).

Installation must be carried out by a certified Jablotron technician. The unit can be flush- or surface-mounted (surface mounting requires a backplate). Always connect the BUS with the system power turned off.

• Dimensions: 82 × 82 × 11 / 22 mm (flush / surface)
• Power supply: from control panel BUS 12 V DC (10…15 V)
• Rated current consumption: 5.5 mA, maximum peak 30 mA
• Ingress protection: IP31, operating humidity up to 75 % (non‑condensing)
• Operating temperature: -10 °C to +50 °C
• External sensor measurement range: -40 °C to +125 °C (±0.1 °C)
• Compatible with: JA-103K, JA-107K; replaces JA-110TP
• Temperature controller class I; contribution to seasonal efficiency ηS = 1 %
