> >>>JAB Thermostat JB-111TP-AN — anthracite

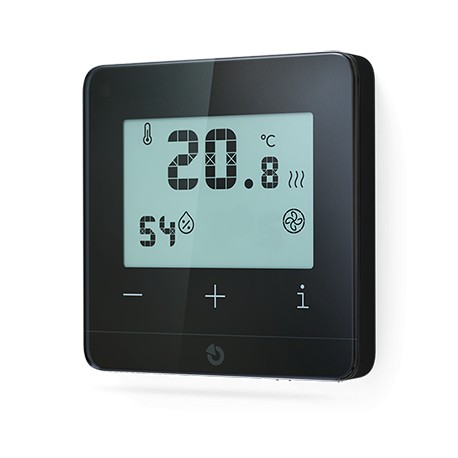

New JAB Thermostat JB-111TP-AN, an addressable room thermostat for JABLOTRON 100+ that measures temperature and humidity View larger

JAB Thermostat JB-111TP-AN — anthracite

JB-111TP-AN

New product

Addressable bus room thermostat JABLOTRON JB-111TP-AN for zonal temperature and humidity control. Measures air temperature and relative humidity, supports external NTC floor sensor JB‑TS‑NTC10K, and controls heating/cooling/ventilation via panel PG outputs. Scheduling and advanced settings available in MyJABLOTRON 2.

More details

More info

JB-111TP-AN is an addressable bus room thermostat designed for zonal control of temperature and humidity within the JABLOTRON 100+ system. Paired with a control panel it enables automatic switching of heating, cooling or ventilation and can respond to system events (e.g. away mode, open window) to reduce energy use.

The device measures air temperature and relative humidity and—when connected to the external NTC floor sensor JB‑TS‑NTC10K (sold separately)—supports floor temperature limiting. Measurements and control commands are exchanged digitally over the system bus; actual switching of appliances is performed by the panel’s PG outputs.

Key technical parameters: bus power 12 V DC (10…15 V), nominal consumption 5.5 mA, peak current up to 30 mA. Front module dimensions are 82 × 82 × 11/22 mm (depending on mounting), protection rating IP31, weight approximately 101.1 g. Operating range −10 °C to +50 °C, relative humidity up to 75 % (non‑condensing).

The JB-111TP-AN replaces the older JA-110TP and is compatible with JABLOTRON 100+ control panels (e.g. JA-103K, JA-107K). Where surface mounting is required, a separate backplate (e.g. PLV-JB11XTX-AN) is available.

Installation and final configuration must be carried out by certified installers. Convenient scheduling, historical values and graphs are available in the MyJABLOTRON 2 app; some features require system registration in the JABLOTRON Cloud.

  • Addressable bus thermostat for JABLOTRON 100+
  • Temperature and relative humidity measurement; optional JB‑TS‑NTC10K floor sensor
  • Controls heating, cooling and ventilation via panel PG outputs
  • Compact 82×82×11/22 mm design, IP31, anthracite finish
