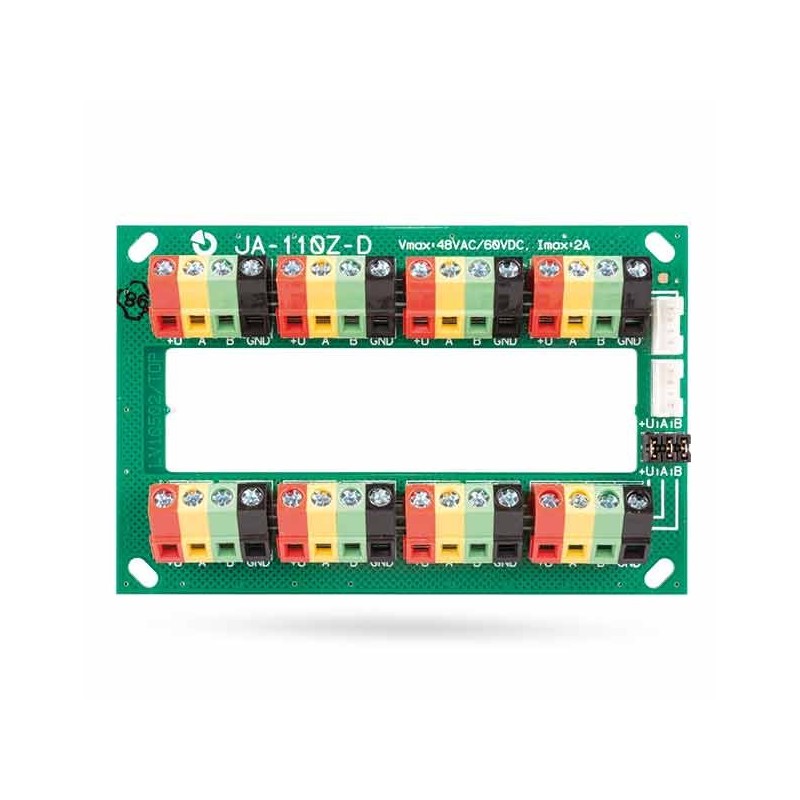

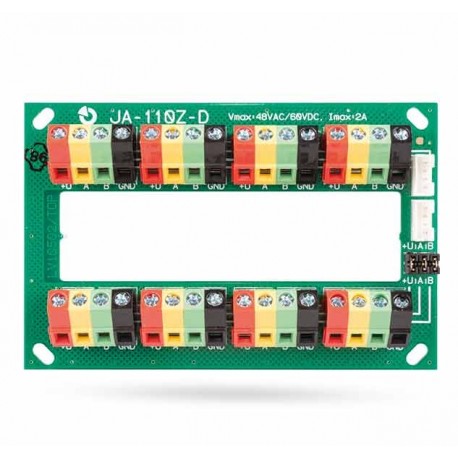

Multiposition bus terminal module JA-110Z-D

Overview

The JA-110Z-D multiposition bus terminal is designed to organise and branch wired BUS installations of the JABLOTRON 100+ system. It provides a consolidated connection point for conductors, making installation layout, testing and service access more efficient without altering BUS communication.

Installation

The module is suitable for mounting in standard junction boxes and Jablotron enclosures (recommended JA-190PL or JA-194PL), in PLV‑CP‑M/L housings or directly inside compatible control panel enclosures (e.g. JA-106K). It is intended for indoor use.

Functionality

JA-110Z-D supports up to 8 bus branches. Disconnecting internal jumpers divides the unit into two independent BUS branches, enabling flexible topology planning and localised isolation for maintenance or fault diagnosis.

Technical data

• Number of bus branches: 8
• Maximum voltage: 42 V AC / 60 V DC
• Maximum current: 2 A
• Dimensions: 102 × 66 × 18 mm
• Environment: indoor

Compatibility and installer notes

The module is compatible with JABLOTRON 100+ control panels using BUS communication (e.g. JA-100K(R), JA-101K(R), JA-103K(R), JA-106K(R), JA-107K(R), JA-102K(R) MERCURY). Use recommended cabling (JABLOTRON CC-01 / CC-02) or suitable UTP/FTP cables following installation best practices. Do not wire the BUS in a ring/loop topology; arrange branch points according to system guidelines.
