Jablotron JA-150A wireless internal siren

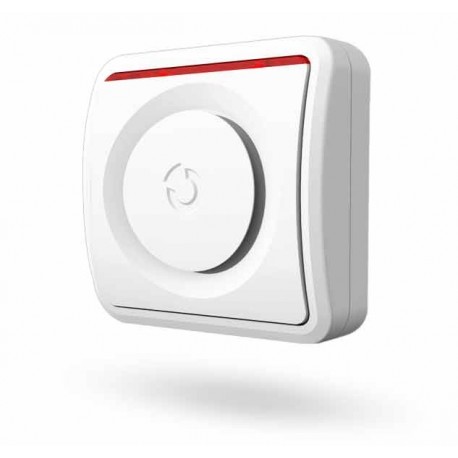

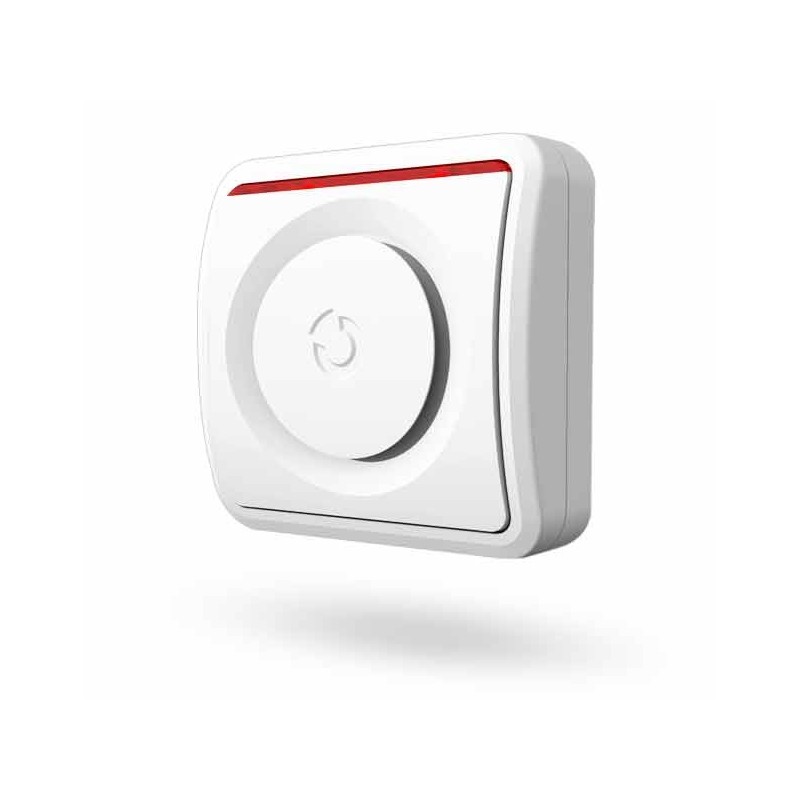

Jablotron JA-150A – wireless internal siren

The JA-150A is designed to provide reliable indoor alarm indication in premises protected by the JABLOTRON 100/100+ system. It delivers audible and visual alarm signals, tones for entry/exit delays and indications of programmable (PG) outputs or other system events (e.g. doorbell).

The device connects wirelessly to the control system (~868 MHz) and occupies one logical address on the control panel. Commissioning, pairing and parameter configuration must be performed by an authorised installer using the system service tools.

Key features:

• Acoustic output approximately 100 dB at 1 m (±5 dB).
• Wireless communication at ~868 MHz; open-area range up to approx. 300 m.
• Mains powered (230 V AC) with internal backup battery to preserve operation during power loss.
• Programmable button for silencing alarms or triggering a panic function, depending on system settings.
• Operating temperature range approximately -10 °C to +40 °C; intended for indoor installation only.

The JA-150A is suitable where a system-integrated indoor siren is required with local control options. It is designed for neat surface or flush mounting. For correct integration and compliance with installation standards, installation and maintenance should be carried out by a qualified technician.
