> >>>>Jablotron JA-110A internal BUS siren
Internal siren for JA-110A alarm system View larger
Previous Next

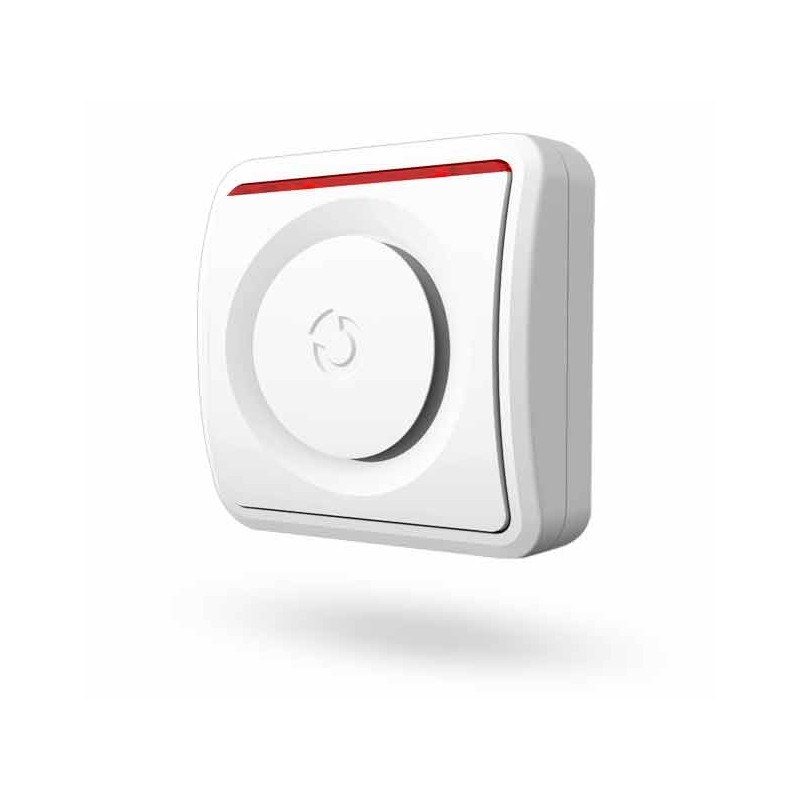

Jablotron JA-110A internal BUS siren

JA-110A

New product

JABLOTRON ALARMS S.A.

Addressable JA-110A internal BUS siren for JABLOTRON 100+. Provides audible alarm signalling, entry/exit delay tones and system status indication. Features a programmable pushbutton, front and rear tamper and is powered/communicates via BUS 9–15 V.

More details

Data sheet

Connection method BUS
Mjesto ugradnje Unutarnja ugradnja

More info

JA-110A internal BUS siren

The JA-110A is an addressable indoor BUS siren intended for integration with JABLOTRON 100+ control panels. It provides audible notification of alarms, differentiation of alarm types, signalling of entry and exit delays and activation of programmable outputs.

Key features include a piezo sounder rated at 85 dB/m, a programmable pushbutton for silencing or confirmation, front and rear tamper contacts and occupation of one BUS address. The device is powered and communicates via the system BUS (9–15 V).

The siren has a connector for an optional backup battery (BAT-3V2-CR2). A backup cell is recommended for cable runs longer than 100 m to compensate for voltage drop and ensure reliable operation during alarm activation.

Installation and compatibility

Mount on an internal wall or suitable enclosure. Tamper switches must be aligned correctly with the magnets in the base. Enrolment to the control panel is performed by an authorised installer via the F-Link software or by pressing the siren button. Compatible with JABLOTRON 100+ control panels.

Technical specifications

  • Power supply: from BUS 12 V DC (9…15 V)
  • Quiescent current: 5 mA
  • Max. current consumption: 30 mA
  • Siren: piezo-electric, 85 dB/m
  • Type: indoor (type X)
  • Dimensions: 80 × 80 × 28 mm
  • Occupies: 1 address position on the BUS

Information is based on the manufacturer's technical documentation. Installation and commissioning must be carried out by a certified technician following the product manual.

Download

Europski certifikat JA-110A

Download (1.53M)

Dekl. o sukladnosti JA-110A

Download (170.61k)

Tehnička specifikacija JA-110A

Download (151.4k)

Uputa proizvođača JA-110A

Download (616.35k)
