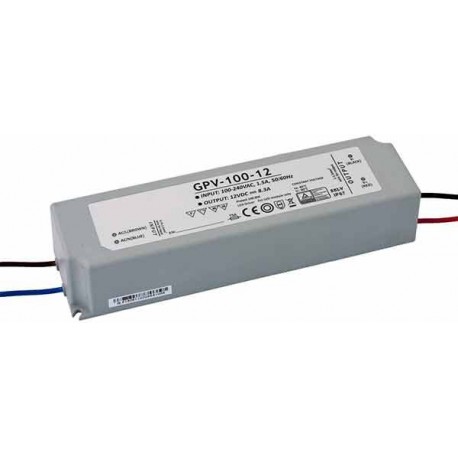

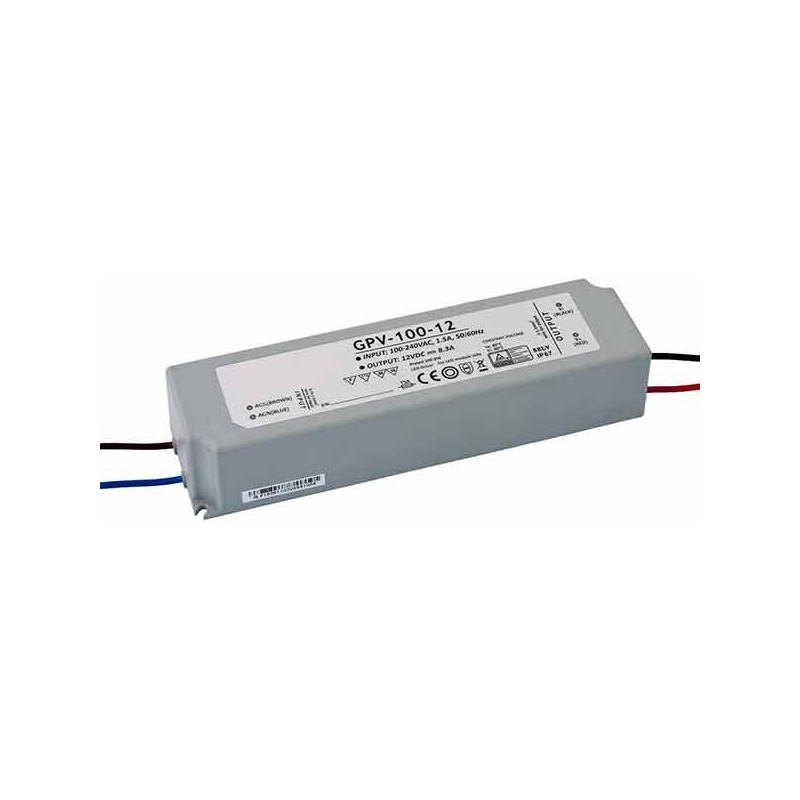

Power supply GPV-100-12

GPV-100-12 from Global Leader Power (GLP) is a fully encapsulated, IP67-rated switching power supply designed for constant-voltage 12 V DC applications such as LED strips, modules and other outdoor or industrial installations.

Key electrical data include a rated output of 99.6 W at 12 V DC (8.3 A) and a universal AC input range of 90–264 VAC (127–370 VDC). The unit is Class II insulated and relies on natural convection for cooling; the fully encapsulated housing ensures robust protection against dust and moisture.

Protection features implemented in the GPV-100-12 comprise short-circuit protection (hiccup with auto-recovery), over-current/overload protection (automatic recovery), over-voltage protection on the output (shutdown until re-power) and thermal shutdown with auto-recovery. The official datasheet specifies derating behavior for elevated ambient temperatures.

Mechanically, the supply is supplied with factory-fitted output leads and screw-mount points for straightforward installation. This makes the GPV-100-12 suitable for signage, outdoor lighting, built-in and industrial applications where IP67 environmental protection is required.

Consult the manufacturer's technical datasheet for full installation instructions, electrical limits and environmental ratings prior to deployment. Certain variants of the GPV-100 series carry TÜV approval; warranty terms are provided by the manufacturer.
