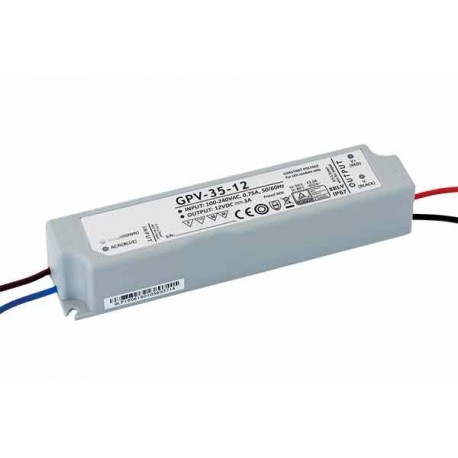

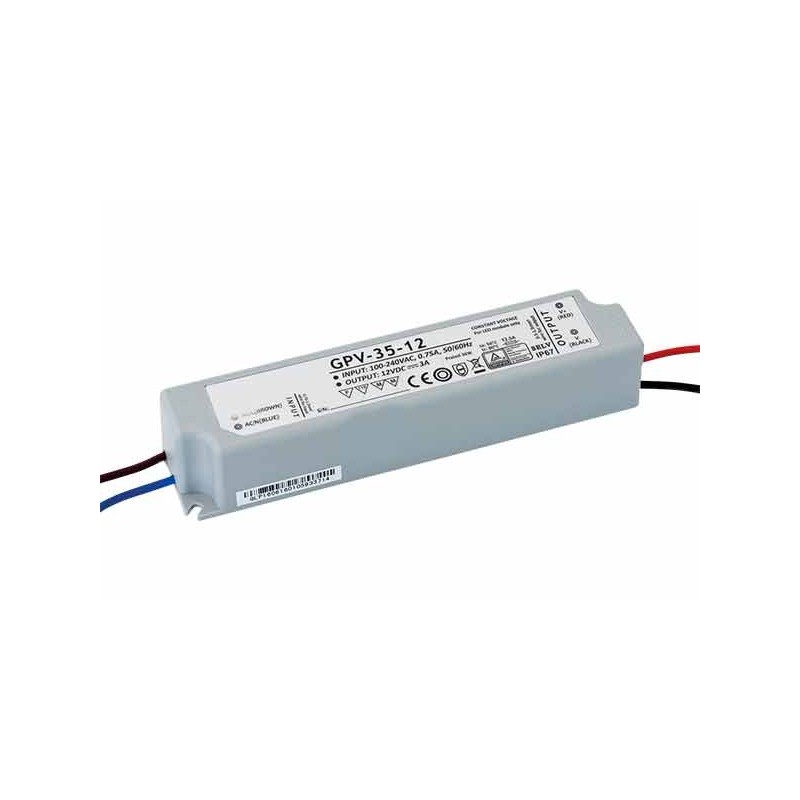

Powe supply GPV-35-12

GPV-35-12 is a fully encapsulated IP67-rated power supply designed for outdoor and industrial environments where protection against moisture and dust is required. It delivers a stable constant-voltage output of 12 V with a maximum rated current of 3 A (rated power 36 W).

Key electrical features include a universal AC input of 90–264 VAC (47–63 Hz), low ripple and noise, and built-in protections such as short-circuit, overcurrent and over-voltage protection with automatic recovery (hiccup mode). The unit is Class II insulated and cooled by natural convection without a fan.

Installation is straightforward thanks to mounting holes and compact mechanical dimensions (example dimensions per manufacturer: 149 × 32 × 28 mm), making the unit suitable for installation in confined channels and enclosures. The GPV-35-12 is suitable for powering LED strips, LED modules and other constant-voltage loads in signage, lighting and industrial applications.

When installing outdoors or in wet environments, ensure correct cable sealing and connector protection to maintain IP67 integrity. The supply includes common regulation and safety features required for reliable operation in most installations.

Applications: LED lighting and decorative lighting, channel letters and signs, outdoor and industrial installations requiring IP67 protection. For project-specific certification or mounting requirements, consult the manufacturer's full technical documentation before installation.
