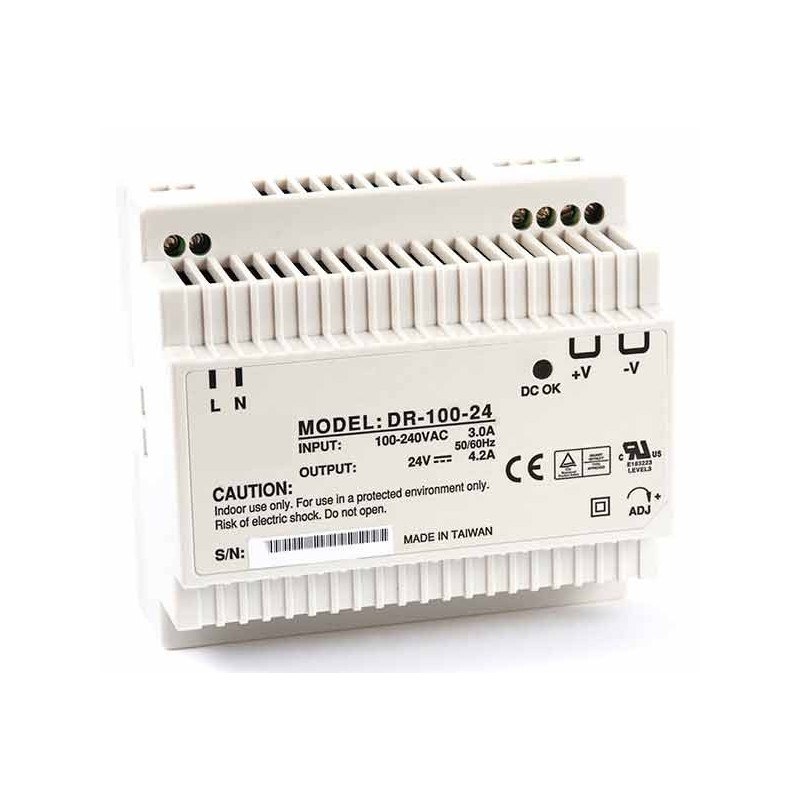

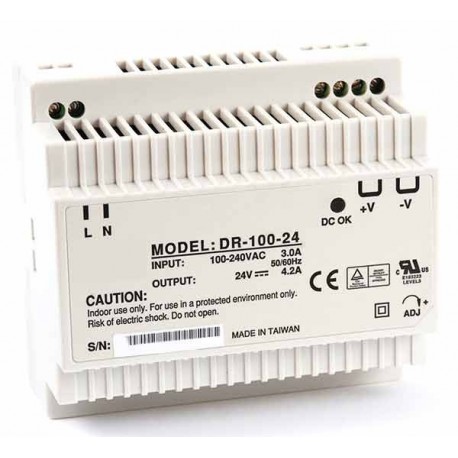

Power supply - DIN rail DR-100-24

Mean Well DR-100-24 is a single-output DIN-rail (TS-35) switching power supply designed for industrial applications that require a stable 24V DC source. The unit provides a nominal 24V output at 4.2A (rated power 100.8W) and allows output adjustment in the 24–29V range for fine tuning.

The input accepts a wide AC range of 88–264VAC (47–63Hz) and can also operate from 124–370VDC when needed. Typical efficiency is approximately 89%, and no-load power consumption is below 1W, which helps reduce standby losses in control cabinets and automation equipment.

Integrated protection functions include short-circuit, overload (current limiting with automatic recovery), over-voltage (output shut-down, recoverable by power-cycling) and over-temperature protection. Output ripple/noise is specified up to 150 mVp-p for the 24V version.

Mechanically, the supply mounts on a standard TS-35 DIN rail (7.5 or 15 mm) and is cooled by natural convection—no fan. A front power LED provides quick status indication. Compact dimensions and low weight support dense installation in control panels.

The DR-100 series meets applicable EMC and industrial immunity requirements. With its protections and wide input range, it is suitable for industrial automation, control cabinets and other 24V DC applications requiring reliable, protected power.

Key specifications

• Model: DR-100-24
• Output: 24 V DC, 4.2 A (100.8 W)
• Adjustable output: 24–29 V
• Input: 88–264 VAC / 124–370 VDC, 47–63 Hz
• Protections: short-circuit, overload, over-voltage, over-temperature
• Ripple/Noise (max.): 150 mVp-p
• Cooling: convection; LED power indicator
• Dimensions: 100 × 93 × 56 mm; weight: ~0.35 kg
