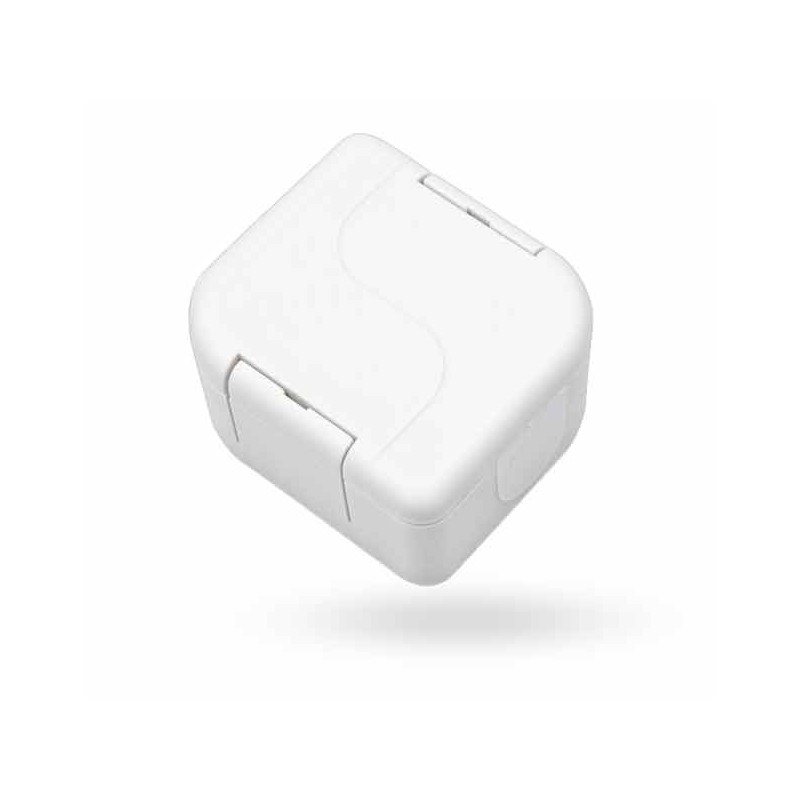

Outdoor installation box JA-192PL-A

Product overview

JA-192PL-A is a multipurpose, sealed plastic enclosure designed for outdoor mounting of small electronic modules. The enclosure provides IP65 protection, safeguarding components from dust ingress and water jets in outdoor or harsh environments.

Technical data

• Model: JA-192PL-A
• Material: plastic
• Color: white
• Ingress protection: IP65
• Inner dimensions: 62 × 38 × 20 mm
• Outer dimensions: 70 × 62 × 35 mm

Compatibility and use

The enclosure is intended for mounting small modules and accessories of the JABLOTRON 100+ product line and similar devices that fit the internal volume. Examples of compatible modules: JA-111SH, JA-111TH, JA-151TH.

Installation notes

To maintain the IP65 rating, ensure seals are intact and the lid is properly closed after installation. Choose a mounting location that allows service access and avoids mechanical damage to sealing surfaces. The enclosure is suitable for outdoor use but not for continuous submersion.

Additional remarks

Verify module dimensions and any ventilation or cable-entry requirements before mounting. Avoid damaging gaskets and connecting surfaces during installation to preserve environmental protection.
