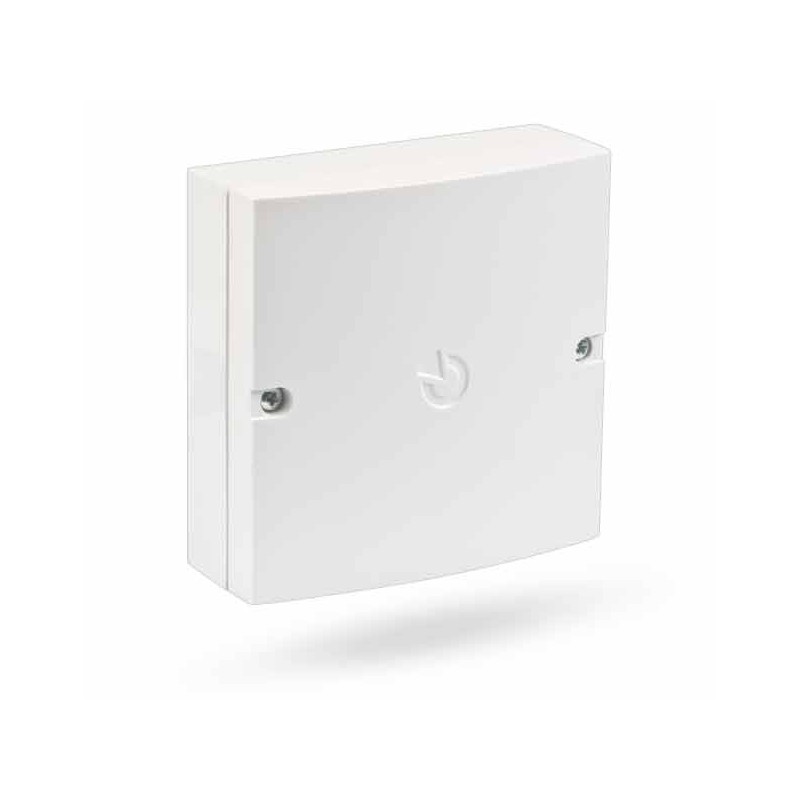

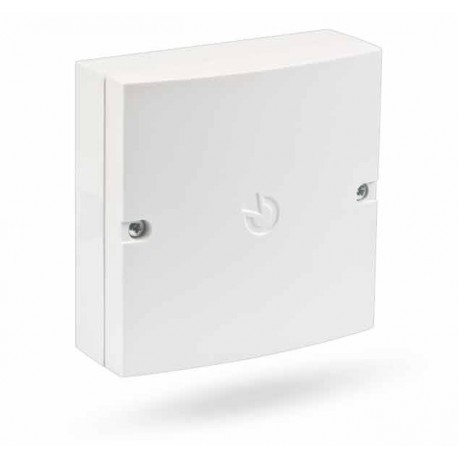

Installation box JA-190PL

JA-190PL is an original multipurpose mounting box designed for tidy installation and wiring of JABLOTRON 100 modules. It suits small communication, power and interface modules and helps organize cable connections inside a compact enclosure.

Technical data: dimensions 90 × 90 × 34 mm, material ABS, enclosure rating IP40, electrical isolation up to 400 V. The box includes designated cable entry points and internal mounting positions to simplify module fixation and cable management.

The JA-190PL is intended for wall or flat-surface mounting and provides easy access for wiring and servicing. Its compact size is suitable for installations where neat distribution of BUS and supply lines is required.

Compatible modules (examples):

• JA-110N, JA-110T, JA-110Z, JA-110Z-B, JB-110N
• JA-111N, JA-111H-AD TRB, JA-111H TRB, JB-111N
• JA-114HN, JA-118M, JA-118N, JB-118N
• JA-120N, JA-121T, JA-150N, JA-151N

Typical use cases include mounting of BUS, power and interface modules, routing and terminating cables, and creating compact module assemblies within JABLOTRON 100 systems. As genuine accessory, JA-190PL matches the mounting points and dimensions of the listed modules.

Note: The JA-190PL does not include a front or rear tamper switch; use larger boxes with tamper contacts if tamper protection is required. Technical values remain unchanged — 90 × 90 × 34 mm, IP40, ABS, electrical isolation up to 400 V.
