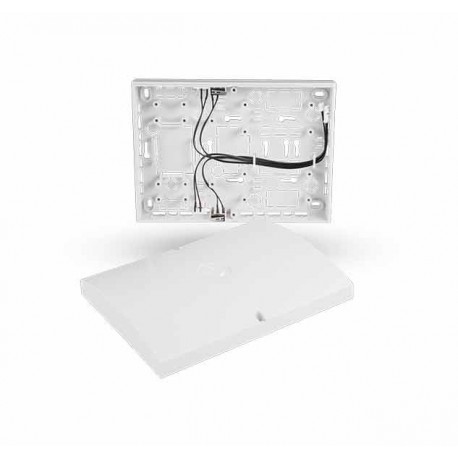

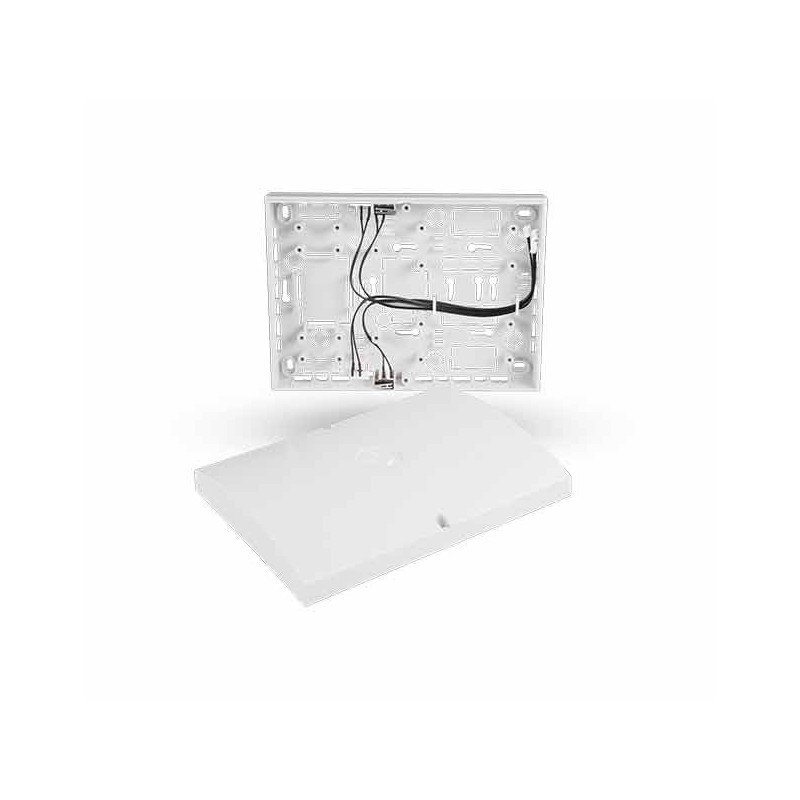

Installation box JA-194PL

JA-194PL – Medium installation box

The JA-194PL enclosure is designed to house Jablotron modules and associated accessories. It features front and rear tamper switches to detect cover opening and detachment from the mounting surface, supporting tamper‑protected installations.

Applications and compatibility

Suitable for input and output modules, radio repeaters and other accessory units. Examples of compatible Jablotron devices include JA-121T, JA-118M, JA-114HN, JA-116H, JA-110Z, JA-110N, JA-111N, JA-150N and JA-151N. The box also allows space for a small backup battery or power adapter where required by the installed device.

Mounting and technical data

• Mounting: wall mounting or direct installation onto a KU-68 flush‑mount back box.
• Dimensions: 182 × 132 × 45 mm.
• Operating temperature: -10 °C to +40 °C.
• Protection rating: IP40 (indoor use).

Installer notes

Check module footprints and connector orientation before installation to ensure adequate space for wiring and any backup power. Use the front and rear tamper contacts according to the project's security requirements to maintain a tamper‑protected system. The JA-194PL provides a tidy and serviceable enclosure option for additional modules in Jablotron installations.
