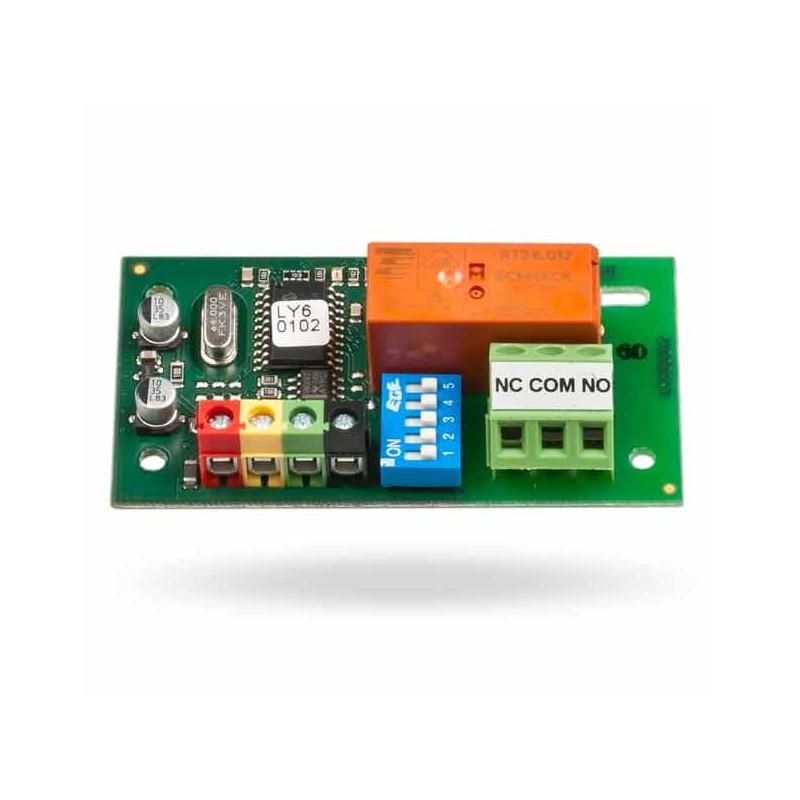

JB-110N PG power output module
BUS-powered PG output module for JABLOTRON 100+ providing a single switching relay contact configurable as NO or NC. Rated for resistive loads up to 16 A (inductive 8 A) and suitable for controlling lighting, fans and similar appliances. The PG output number is set by DIP switches; the module is powered from the control panel BUS (12 V, range 9–15 V).
More info
The JB-110N is a BUS PG power output module designed for the JABLOTRON 100+ system. It supplies one switching contact via an output relay and is intended for switching lighting, fans and similar loads.
The relay can be set to NO (normally open) or NC (normally closed). The corresponding PG output (PG 1–128) is configured using DIP switches. The module is powered from the control panel BUS (12 V DC, range 9–15 V) and does not occupy an address in the security system.
Key technical specifications:
- Power: BUS 12 V DC (9…15 V)
- Current consumption: 5 mA (relay off) / 45 mA (relay on)
- Relay contact rating – max switched voltage: 250 V AC
- Maximum current (resistive): 16 A; inductive (cosφ=0.4): 8 A
- Minimum switched DC power: 0.5 W
- Dimensions: 78 x 40 x 20 mm; weight: 34 g
The module should be installed in a JA‑19xPL mounting box or inside the control panel enclosure to meet protection class II requirements. Installation and electrical connections must be performed by a trained and authorized technician. JB-110N provides a simple, reliable PG-controlled power output solution for Jablotron 100+ installations.
