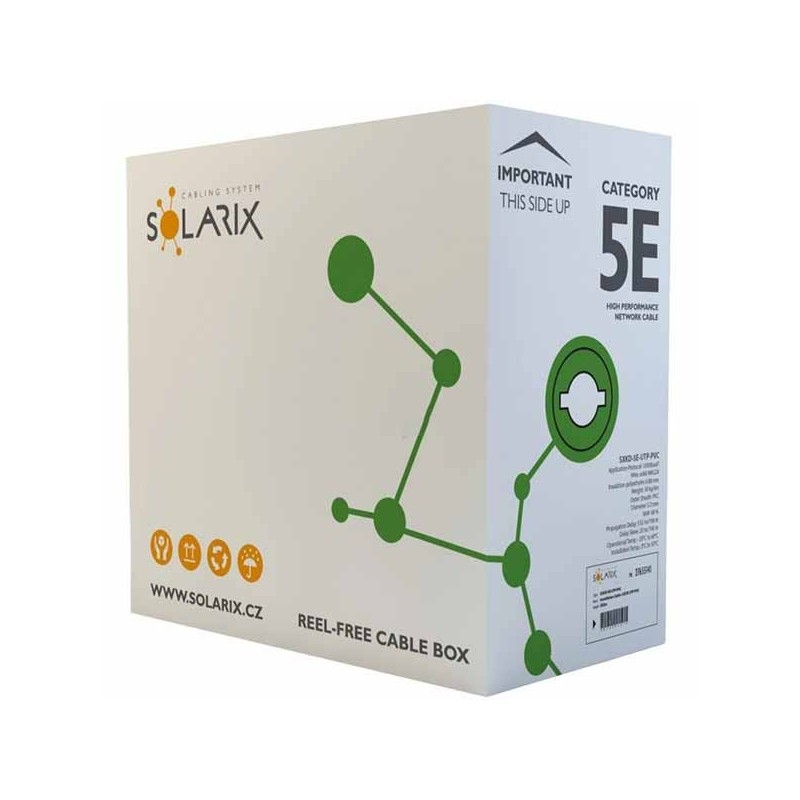

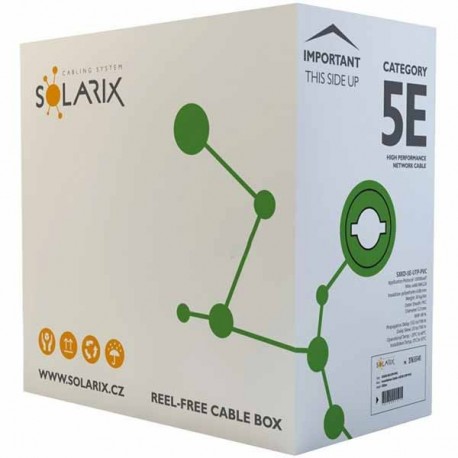

CAB Cat. 5E UTP-PVC SOL -305 met kutija

Solarix SXKD-5E-UTP-PVC (Cat.5E) — 305 m/box

Unshielded (UTP) Category 5E solid conductor cable supplied on a 305 m cardboard box to simplify on-site pulling and avoid tangling. Suitable for structured cabling, CCTV, intercoms and general data/voice installations.

Construction and materials

The cable contains 4 pairs (orange, blue, green, brown). Conductors are solid copper Ø 0.50 mm ±0.005 mm (AWG24) with HDPE insulation. Outer sheath is PVC 0.50 mm ±0.05 mm; overall cable diameter approx. 5.0 mm ±0.5 mm. Sheath color: grey (RAL 7035).

Performance and standards

Meets ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2‑E. Reaction to fire class Eca (CPR tested). Supports 10/100/1000BASE‑T and, depending on installation quality and equipment, 2.5GBASE‑T and 5GBASE‑T. Compatible with PoE (802.3af) and PoE+ (802.3at).

Installation and handling

• NVP 68%; propagation delay ≈ 535 ns/100 m; delay skew ≤ 45 ns/100 m.
• Minimum bending radius during installation: 4× cable diameter.
• Maximum tensile load for installation: 100 N.
• Operating temperature: -20 °C to 60 °C.

Packaging and compliance

Length 305 m/box; typical box dimensions approx. 205 × 350 × 350 mm for easy pulling on site. Cable is RoHS and REACH compliant.

Applications

Recommended for office networks, CCTV, intercom systems and general structured cabling where a reliable Cat.5E solid cable in box packaging is required.
