CAB Cat. 5E UTP-LS0H SOL- 305 met kutija

Solarix SXKD-5E-UTP-LSOH is a U/UTP Cat.5E installation cable designed for horizontal cabling, security and CCTV systems. The LSOH jacket with reaction to fire class Dca‑s1,d2,a1 and a 350 MHz test rating provides compliance with building safety requirements and stable transmission characteristics.

Key technical features:

• Construction: U/UTP, 4 pairs, solid conductors
• Type number: SXKD-5E-UTP-LSOH
• Conductor: solid copper ø 0.50 mm (AWG 24), HDPE insulation
• Bandwidth: tested to 350 MHz; supports 10BASE‑T, 100BASE‑TX, 1000BASE‑T, 2.5GBASE‑T and 5GBASE‑T*
• Jacket: LSOH, purple RAL 4005, reaction to fire class Dca‑s1,d2,a1
• Electrical/physical: NVP 68 %, propagation delay 535 ns/100 m, delay skew ≤ 45 ns/100 m

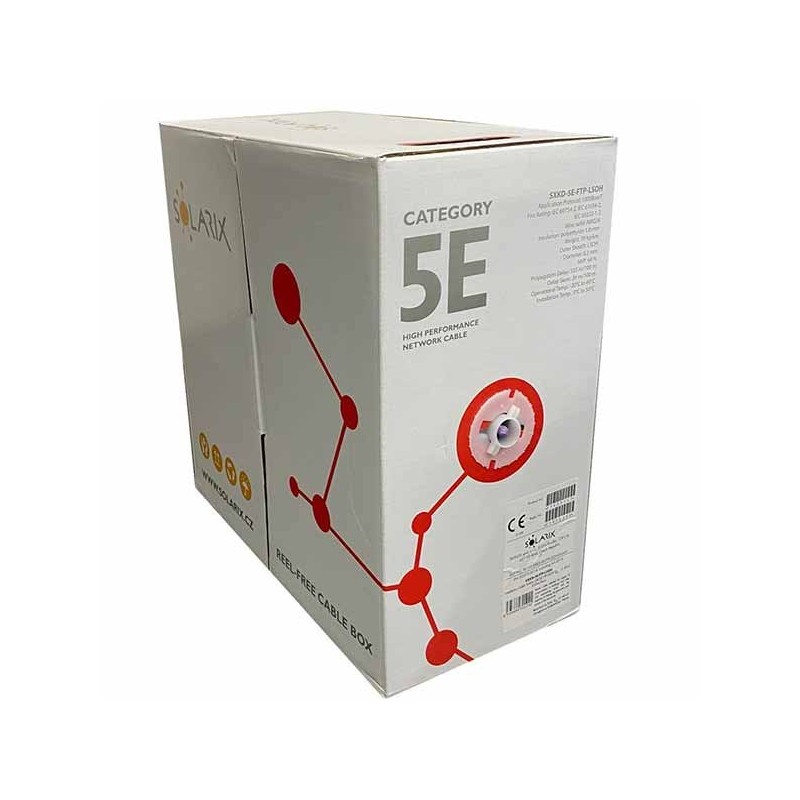

• Packaging: 305 m per reinforced cardboard box; cable printed with meter markings for faster installation

Applications: suitable for building horizontal cabling, network backbones for security and automation systems, and CCTV installations where fire safety and consistent Ethernet performance are required. Supports common PoE types (802.3af/at).

Installation notes: the box is designed for tangle‑free payout on site; minimum bending radius during installation 4× cable diameter, maximum tensile strength 100 N. Installation temperature 0 °C to 50 °C; operating range ‑20 °C to 60 °C.

Standards and warranty: meets ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2‑E. Tested under the EC VERIFIED program. Manufacturer standard warranty 5 years, system warranty up to 30 years.

*Actual distance and throughput for 2.5GBASE‑T and 5GBASE‑T depend on installation quality and connected equipment.
