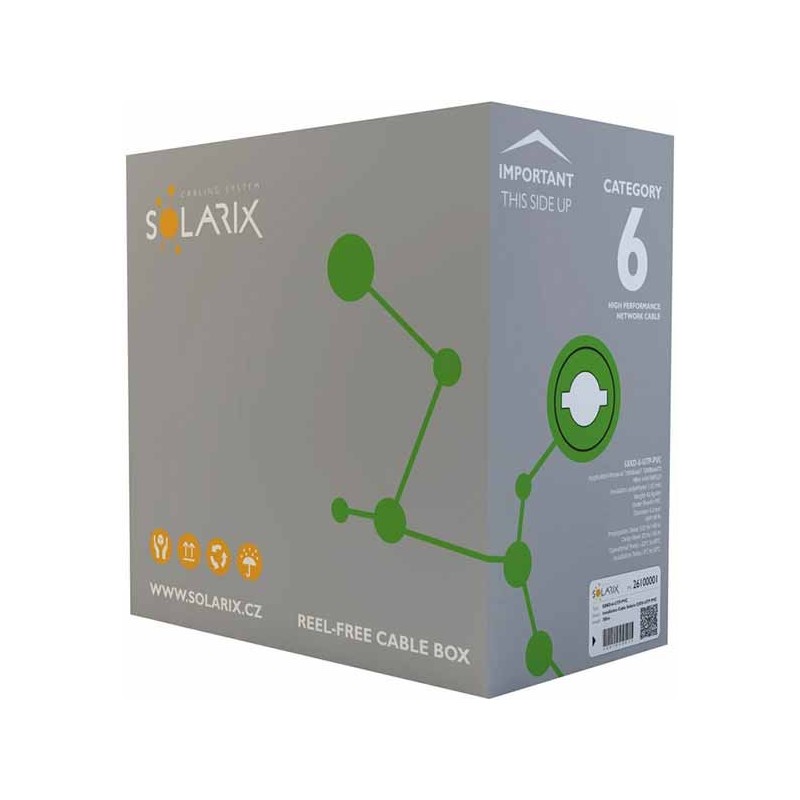

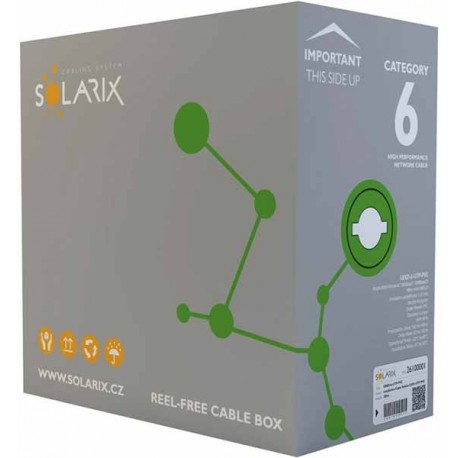

CAB Cat. 6 UTP-PVC SOL- 305 met kutija

Solarix SXKD-6-UTP-PVC is an unshielded Category 6 (Class E) installation cable supplied in a practical 305 m cardboard box. The meter marking (0–305 m) enables precise measurement and speeds up deployment, while box packaging prevents tangling on site.

The cable uses U/UTP construction with a plastic cross separator to reduce crosstalk between pairs. The PVC outer sheath carries CPR reaction-to-fire classification Eca, appropriate for typical installation environments.

It supports Ethernet protocols 10BASE-T, 100BASE-TX, 1000BASE-T as well as 2.5GBASE-T and 5GBASE-T, making it suitable for CCTV, intercom systems and business LANs.

Key technical specifications

• Conductors: copper Ø 0.55 mm (AWG 23)
• Cable diameter: ≈ 6.1 mm
• NVP: 69%
• Propagation delay: 535 ns/100 m
• Delay skew: ≤45 ns/100 m
• Max tensile strength: 100 N
• Minimum bending radius during installation: 4× cable diameter

The cable is tested to ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-E standards. CPR testing was performed in the AVCP 3 system by the independent laboratory FORCE TECHNOLOGY.

Highlights

• 305 m box for clean, tangle-free pay-out and faster installation.
• Meter-marked jacket for accurate on-site measuring.
• Support for 2.5G and 5G for improved future-proofing.
• Suitable for security, intercom and structured cabling projects.
• Manufacturer warranty: 5 years standard, 30 years system warranty.

We supply project quantities and offer pallet/logistics support for larger orders.
