Multifunctional control relay AC-160-DIN

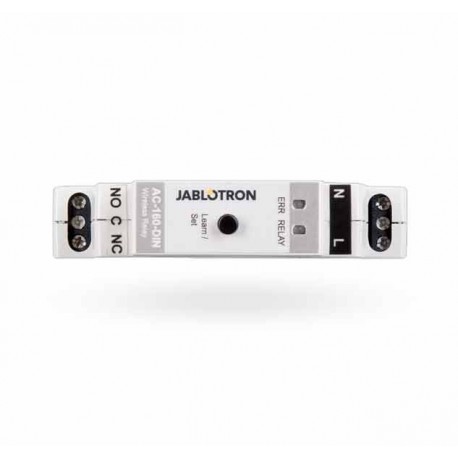

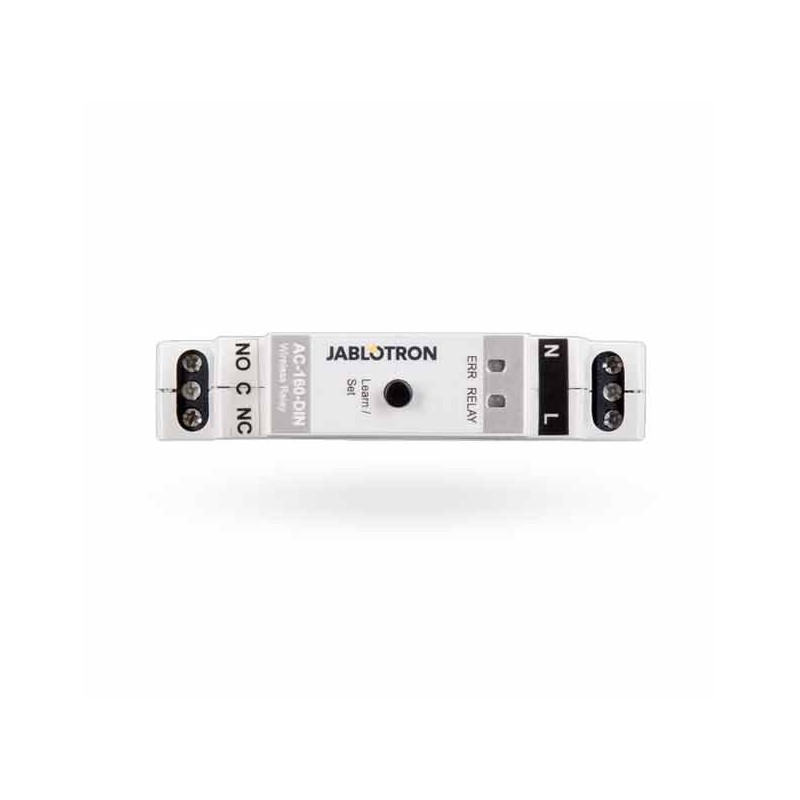

AC-160-DIN is a wireless multifunctional relay designed for standard DIN-rail mounting. It can operate as part of the JABLOTRON 100+ system or as an independent device and provides a safe switching contact for controlling 230 V loads up to 16 A.

The relay offers galvanic and safety isolation and can follow PG outputs from a control panel or be activated by JA-15x series devices with unidirectional communication enrolled directly to the relay. A push-button on the unit enables manual state changes and firmware can be updated via USB.

Key technical data:

• Supply: 230 V / 50 Hz
• Own power consumption (min/max): 0.5 W / 1.7 W
• Contact rating: max. 250 V AC; resistive load up to 16 A; inductive/capacitive (cosφ=0.4) up to 8 A; halogen lights up to 1000 W; minimum DC switching 0.5 W
• Recommended wiring: max. 2 × 1.5 mm² or max. 1 × 2.5 mm²
• Protection: IP20 (IP40 with front cover)
• Dimensions: 18 × 90 × 64 mm; weight: 65 g
• Operating temperature: -10 °C to +40 °C
• Communication: 868.1 MHz; internal antenna; optional external antenna AN-868

The relay supports five selectable response modes: NATURAL (copies the command device state), IMPULSE (single pulse), STATUS CHANGE (toggles state on each activation), SWITCH OFF (turns power off to the load) and BLOCK (freezes relay operation). These options make AC-160-DIN suitable for switching lighting, gate and roller controls, motors and other 230 V consumers in residential and commercial installations.

When installing, follow applicable wiring and safety regulations and size conductors according to rated loads. The device is intended for standard DIN-rail mounting and can use the optional AN-868 external antenna to improve radio range where needed.
