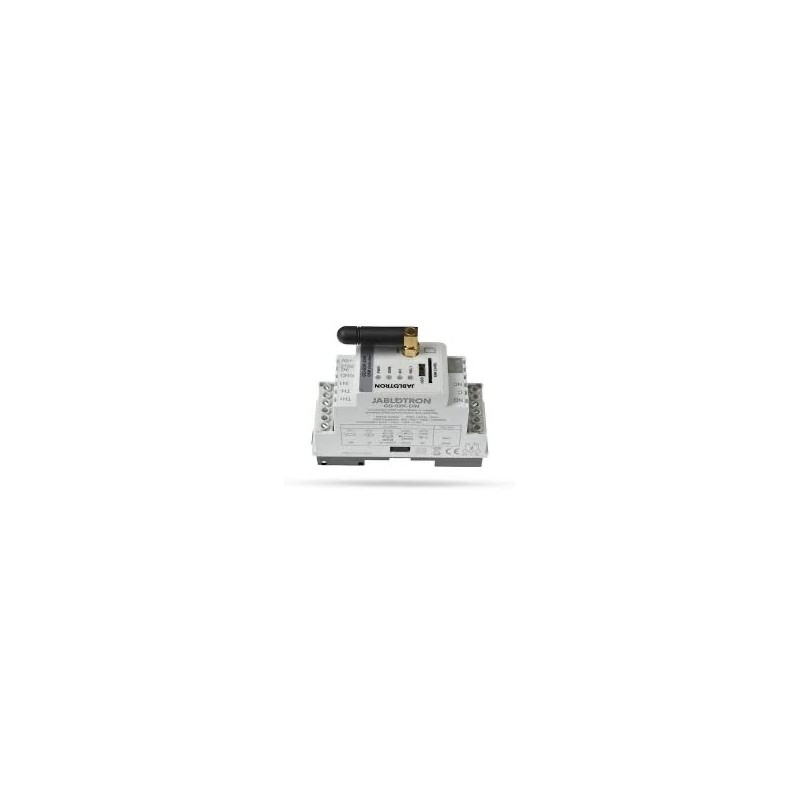

> GD-02K-DIN universal GSM communicator and controller

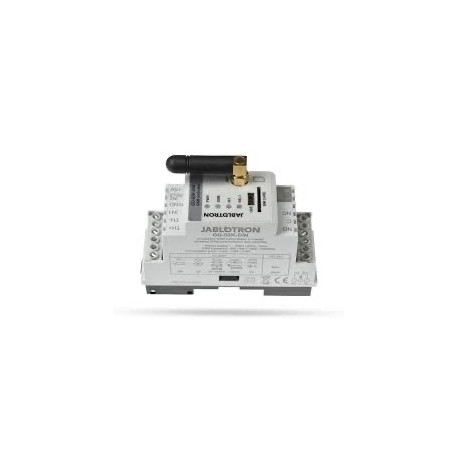

GD-02K-DIN univerzalni GSM komunikator i kontroler View larger

GD-02K-DIN universal GSM communicator and controller

GD-02K-DIN

New product

JABLOTRON ALARMS S.A.

The GD-02K-DIN is a DIN‑rail universal GSM communicator and controller for remote control and monitoring via SMS or call. It features 2 configurable outputs, 2 inputs with pulse‑counter support, JB-TS-PT1000 temperature input and memory for up to 100 phone numbers.

More details

More info

Overview
The GD-02K-DIN provides reliable remote control and status monitoring of appliances and systems using standard SMS commands or calls. It integrates control outputs, status inputs, temperature measurement and pulse counting in a compact DIN‑rail enclosure.

Outputs and control
The unit includes two relay outputs (REL1 — power output; REL2 — signal output) configurable as status or pulse outputs (pulse length 1 s – 24 h). Outputs can be operated by SMS, call or local inputs, and custom notification texts can be assigned for state changes.

Inputs and pulse counter
IN1 and IN2 function as universal inputs (active when connected to GND, max. 24 V) and support pulse counting for one or two external meters (electricity, gas, water), including two‑tariff meters. Counter status and limit breaches are reported via SMS.

Temperature measurement and thermostat
A JB-TS-PT1000 digital temperature sensor can be connected to the TH inputs. The module can measure temperature, alert on threshold violations and operate as a thermostat by switching REL1 according to remotely set target and antifreeze temperatures.

Installation and configuration
Designed for DIN‑rail mounting. Configuration is possible locally via MicroUSB using GD‑Link software (v.2.3.0 or later) or remotely via GPRS. The device stores up to 100 authorised phone numbers and includes an internal Polymer Li‑ion backup battery to maintain operation during mains failure.

  • Technical specifications
  • Voltage 230 V AC/50 Hz, protection class II.
  • Average standby power 1.2 W (3.5 W relay included).
  • Protected 1 A; type A.
  • Internal backup battery Polymer Lithium‑ion 300 mAh; backup time 3 hours.
  • GSM/GPRS Quad Band 850/900/1800/1900 MHz.
  • Relay contact load REL1: Max. switching voltage 250 V AC; 24 V DC; resistive (cosφ=1) max. 16 A; inductive/capacitive (cosφ=0.4) max. 3 A; fluorescent max. 3 A/690 VA; incandescent (halogen) max. 1000 W; minimum DC switching power 10 mA; 5 V DC. Relay is galvanically separated and insulated up to 4 kV.
  • Input IN1 active when connected to GND, max. 24 V. Universal IN2/REL2 same behaviour; output switches to GND, output protection 100 mA, max. voltage 24 V.
  • IN1 and IN2 compatible with class B pulse outputs according to EN 62053-31.
  • TH inputs for JB-TS-PT1000 range -30 °C to +125 °C (max. cable length 10 m).
  • Auxiliary power output +5 V DC/max. 100 mA (no reserve).
  • Operating temperature 0 °C to +40 °C; front panel IP20; dimensions (without antenna) 90 x 36 x 58 mm; weight 140 g.
  • Electrical safety EN 62368-1; EMC ETSI EN 301 489-7, EN 55024, EN 55032, EN 60730-1; Radio ETSI EN 301 511.

GD-02K-DIN is suitable for gate and pump control, heating management, consumption monitoring and other applications that require a compact DIN‑rail GSM interface with local and remote configuration options.
