> BB-02 Backup Battery
BB-02 Pomoćna baterija View larger

BB-02 Backup Battery

BB-02

New product

JABLOTRON ALARMS S.A.

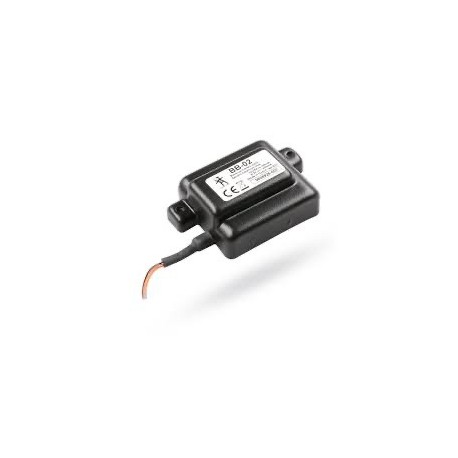

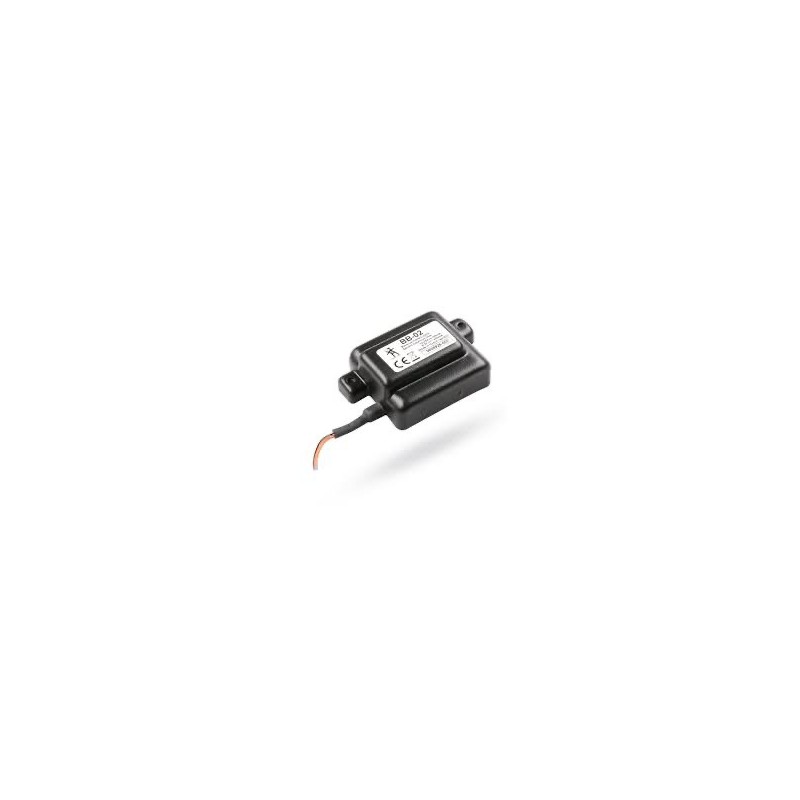

BB-02 is an auxiliary battery equipped with its own electronics to take control of the power supply. It is intended for use with CA-1803 and CA-1802 car alarms.

More details

More info

During normal operation, BB-02 is powered (or charged) from the car alarm power supply. If the voltage drops below 8.5 V, BB-02 starts generating voltage. In addition to the acoustic siren, BB-02 supports all car alarm functions. This also includes voice communication if the HF-03 hands-free kit is connected. The backup voltage is generated either during the duration of the car power failure or until the BB-02 is completely discharged.

Technical specifications
Power supply 12 -24V
Reserve battery capacity 400 mAh (at 9.3 V)
Auxiliary current max. 20 mA (when fully discharged)
Output detection threshold 8.5 V
Generated backup voltage 9.3 V
Power supply shutdown threshold when discharged below 3.9 V
Maximum constant current of the generated voltage 400 mA
Consumption BB-02 independently (without battery charging) <4 mA
Backup duration at least 5 hours
Life span 2 - 4 years
