> CP-201T-NW Resistor Temperature Sensor

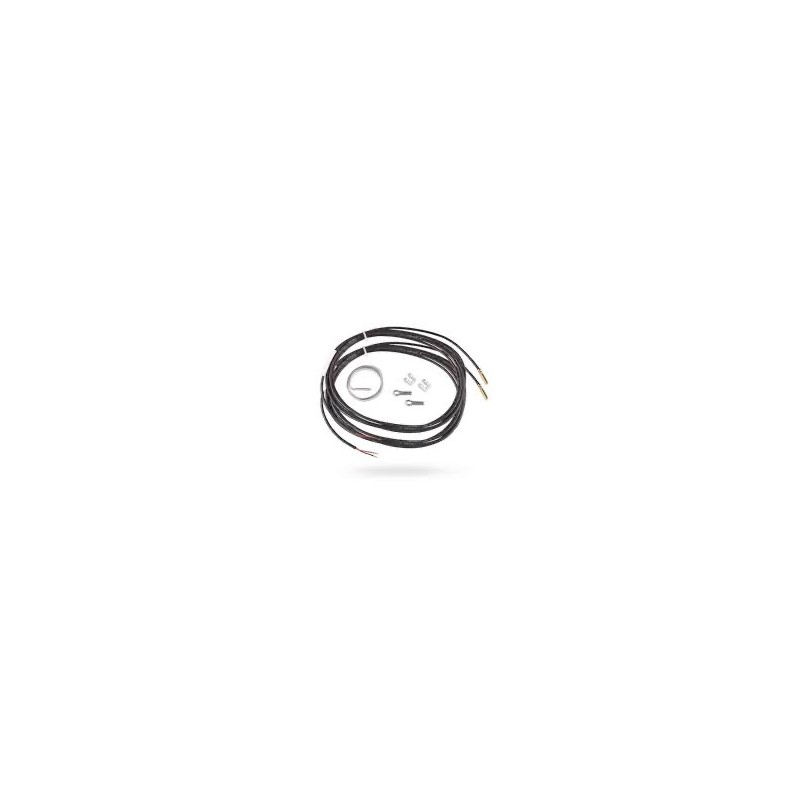

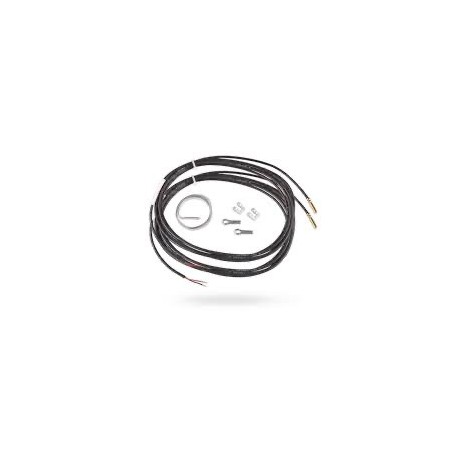

CP-201T-NW otpornik Senzor temperature View larger

CP-201T-NW Resistor Temperature Sensor

CP-201T-NW

New product

JABLOTRON ALARMS S.A.

The CP-201T-NW resistor temperature sensor is designed for universal measurement of liquids, gases and solids. It uses an NTC 10 kΩ element (B25/100 = 3455 K), operates from -25 °C to +105 °C, features a brass probe, IP67 protection and a 3 m cable.

More details

More info

The CP-201T-NW is a reliable resistor temperature sensor intended for general-purpose temperature detection in liquids, gases and solids. It is suitable for pipe surface measurements when used with appropriate clamps or holders to ensure consistent thermal contact. The operating range is -25 °C to +105 °C and must not be exceeded, even temporarily.

Key features

Based on an NTC 10 kΩ element (B25/100 = 3455 K), the sensor has a two‑wire connection and is compatible with controllers that accept NTC 10 kΩ probes. The brass housing and IP67 rating provide robust protection against moisture and dust, while the 3 m unshielded PVC cable simplifies installation in control panels or remote locations.

Technical specifications

  • Manufactured for JABLOTRON by SENSIT s.r.o, Czech Republic
  • Sensor type: NTC 10 kΩ, B25/100 = 3455 K
  • Sensor tolerance: ± 1% at 25 °C; ± 2 °C in range -25 °C to 105 °C
  • Connection: 2 wires
  • Detection range: -25 °C to 105 °C
  • Maximum input power: 15 mW
  • Response time: τ0.5 < 7 s, τ0.9 < 15 s (in flowing water > 0.2 m·s⁻¹)
  • Water resistance: IP67 according to EN 60 529
  • Housing: brass; diameter 4.6 ± 0.1 mm; length 24 mm
  • Insulation resistance: > 200 MΩ at 500 V DC, 25 °C ± 3 °C
  • Cable: unshielded PVC, 2 x 0.35 mm², length 3 m

The CP-201T-NW is commonly used with Jablotron TM-201 series modules (e.g. TM-201A) and other control units accepting NTC 10 kΩ probes. Avoid exposing the probe to aggressive chemicals or mechanical damage. For pipe measurements use dedicated clamps or holders for optimal thermal contact and measurement repeatability.

Note: Observe the specified temperature and electrical limits to maintain measurement accuracy and safe operation.
