> >>>BUS 4 I and 4 O I/Omodule JA-114HN
JAB MODUL  I/U modul, 4 ulaza, 4 izlaza. BUS JA-114HN View larger

BUS 4 I and 4 O I/Omodule JA-114HN

JA-114HN

New product

JABLOTRON ALARMS S.A.

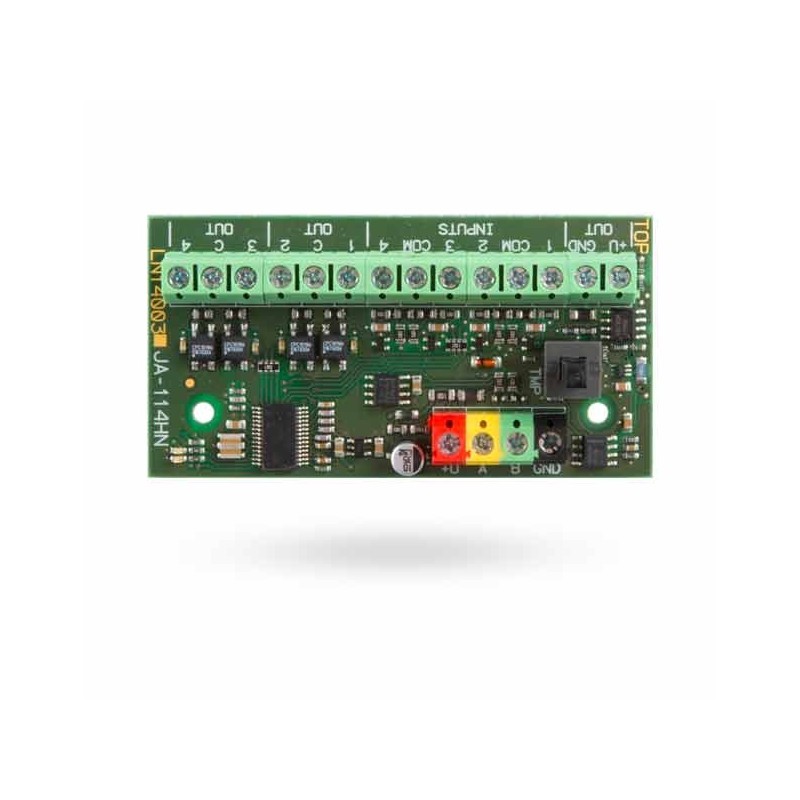

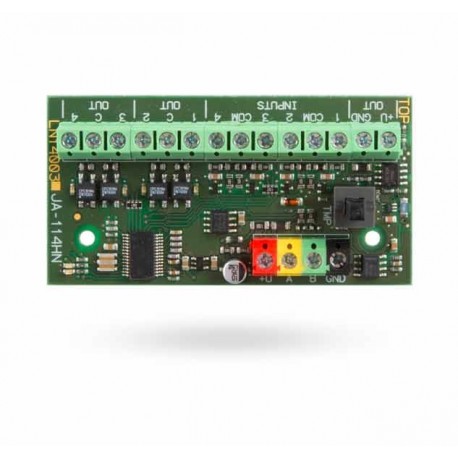

JA-114HN is a BUS I/O module for JABLOTRON 100/100+ adding 4 wired inputs with configurable EOL balancing, 4 galvanically isolated PG/OC outputs (500 mA/38 V each) and an auxiliary +U supply with electronic fuse (max. 200 mA). Occupies 4 panel addresses and includes front and rear tamper.

More details

More info

JA-114HN is a bus I/O expansion module for JABLOTRON 100/100+ control panels that provides additional wired inputs and programmable PG outputs. Each of the four inputs supports selectable EOL/balancing type and configurable resistor values to simplify integration of existing wired detectors and retrofit installations.

The outputs (OUT1–OUT4) are galvanically isolated PG/OC outputs arranged so that each pair shares a common C terminal. Each output is rated to switch up to 500 mA at a maximum of 38 V, suitable for driving relays and compatible loads within these limits.

The auxiliary +U output supplies power for relays or accessories and is protected by an electronic fuse with a maximum available current of 200 mA. In the event of a short circuit the +U output is disabled and the module reports a fault until the condition is cleared.

Power is supplied from the control panel bus (nominal 12 V, operating range 9…15 V). Typical standby current of the module is approximately 25 mA plus the consumption of connected devices. Inputs specify a maximum measurable resistance of 20 kΩ; recommended cable runs to detectors are up to 100 m.

The JA-114HN occupies four addresses on the panel and features both front and rear tamper contacts. Its compact dimensions (77 × 40 × 31 mm) allow installation in JA-19xPL junction boxes or directly inside the control panel.

Key specifications

  • 4 wired inputs with configurable EOL balancing
  • 4 galvanically isolated PG/OC outputs, each up to 500 mA / 38 V
  • Auxiliary +U output with electronic fuse, max. 200 mA
  • Occupies 4 addresses; front and rear tamper
  • Bus supply 12 V (9…15 V); dimensions 77 × 40 × 31 mm

Download

Europski certifikat JA-114HN

Download (1.53M)

Dekl. o sukladnosti JA-114HN

Download (169.99k)

Tehnička specifikacija JA-114HN

Download (179.76k)

Uputa proizvođača JA-114HN

Download (723.36k)

Accessories

  • Multipurpose installation box JA-190PL

    Reference: JA-190PL

    Brand: JABLOTRON ALARMS S.A.

    Installation box JA-190PL

    JA-190PL is a multipurpose ABS mounting box for JABLOTRON 100 modules. It provides cable entries and internal fixing points for tidy wiring and module attachment. Dimensions 90 × 90 × 34 mm, enclosure rating IP40.

  • Installation box JA-194PL

    Reference: JA-194PL

    Brand: JABLOTRON ALARMS S.A.

    Installation box JA-194PL

    The JA-194PL is a medium installation box for Jablotron modules, equipped with front and rear tamper switches. Suitable for input/output modules, signal repeaters and auxiliary hubs. Wall or KU-68 back‑box mounting. Dimensions: 182×132×45 mm.

  • Multipurpose installation box- JA-195PL

    Reference: JA-195PL

    Brand: JABLOTRON ALARMS S.A.

    Installation box JA-195PL

    JA-195PL is a multipurpose mounting box for Jablotron modules, equipped with front and rear tamper switches to detect opening or removal. Size 102 × 102 × 34 mm; suitable for a range of input/output modules and hub devices. Provides tidy cable routing and protection for connectors.
