> >>>>Magnetic detector, invisible JA-182M
JA-182M View larger

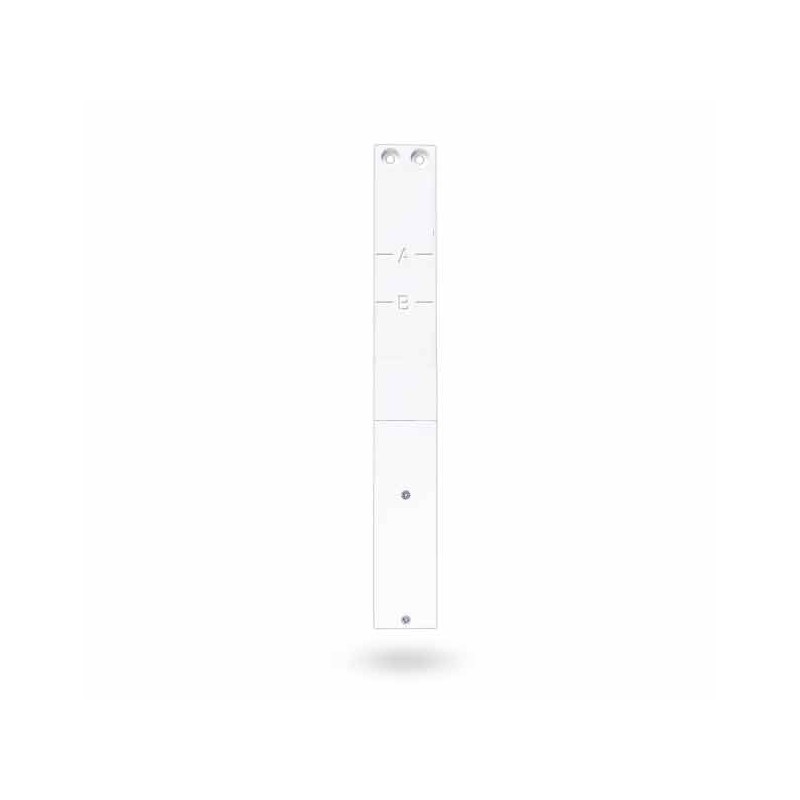

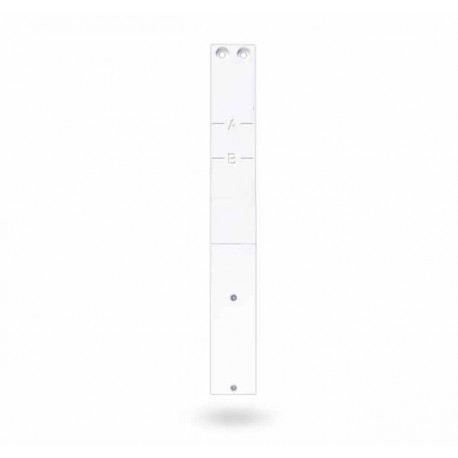

Magnetic detector, invisible JA-182M

JA-182M

New product

JABLOTRON ALARMS S.A.

Wireless invisible magnetic detector for window and door opening detection. The sensor is recessed into plastic or wooden frames for discreet protection. Powered by 2×CR2354, communicates on 868.1 MHz. Batteries not included.

More details

Data sheet

Connection method Wireless

More info

JA-182M — Wireless invisible magnetic detector

The JA-182M is designed to detect the opening of windows and doors. Its magnetic sensor is recessed into the frame to provide a discreet perimeter protection solution without visible external components. The device operates within Jablotron wireless alarm systems.

Installation must be performed by a qualified technician following the manufacturer's instructions to ensure correct operation and to preserve the detector's security classification. The slim profile and listed dimensions allow installation in most common PVC and wooden frames, but the frame depth and hinge position should be checked before mounting.

Key features

  • Invisible recessed design — sensor installed inside the frame.
  • Wireless communication: 868.1 MHz, Jablotron protocol.
  • Power: 2 × CR2354 batteries (not included).
  • Typical battery life: approx. 3 years (up to 5 activations/day).
  • Communication range: approx. 200 m in open area.
  • Dimensions: 192 × 25 × 9 mm; Operating temperature: -10 to +40 °C.
  • Classification: Grade 2 according to EN 50131.

The JA-182M is suitable for most manufactured window and door frames, especially PVC and wooden types. For correct recessed installation (cut-out depth, hinge location and hardware compatibility), consult the installation manual or an authorized installer. The recessed design combines unobtrusive appearance with reliable opening detection.

Download

Europski certifikat JA-182M

Download (1.53M)

Dekl. o sukladnosti JA-182M

Download (169.85k)

Tehnička specifikacija JA-182M

Download (100.12k)
