> >>>>JAB Detektor, magnetni, bežièni, mini JA-151M-GR

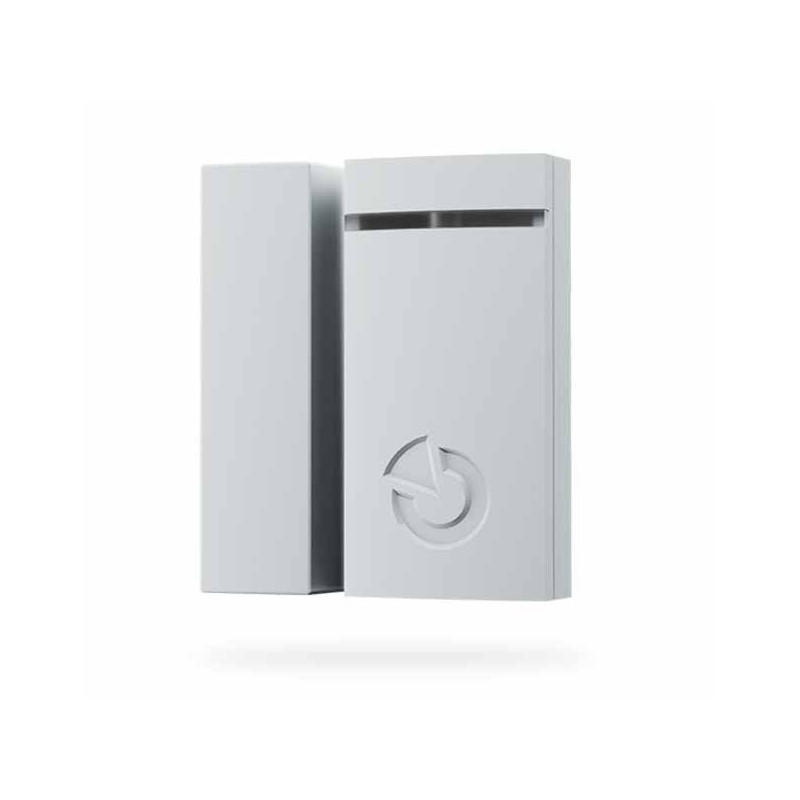

JAB Detektor, magnetni, bežièni, mini JA-151M-GR View larger

JAB Detektor, magnetni, bežièni, mini JA-151M-GR

JA-151M-GR

New product

The JA-151M-GR is a mini wireless magnetic detector for detecting door and window openings. Powered by one CR2032 cell (3.0 V / 0.2 Ah) with typical life of about 2 years (up to 20 activations/day). Operates at 868.1 MHz and occupies one address in the JABLOTRON system.

More details

More info

Product overview

The JA-151M-GR is a compact wireless magnetic detector designed to sense openings of doors and windows in residential and commercial installations. Its small footprint allows discreet mounting on narrow frames; the grey housing blends with the surroundings.

The device is addressable and occupies a single slot in the JABLOTRON 100/100+ system. Radio communication uses the 868.1 MHz band (JABLOTRON protocol) with a maximum ERP of 3 mW.

Power is supplied by a single CR2032 lithium cell (3.0 V / 0.2 Ah) — battery not included. Typical battery life is approximately 2 years with up to 20 activations per day. The detector monitors battery voltage and reports low battery to the control panel.

Installation and tamper: the detector includes a cover tamper and a permanent magnet that can be mounted on either side depending on door/window orientation. Enrollment is done by serial number entry or using manufacturer programming tools. Battery replacement and commissioning should be performed by an authorized installer, preferably with the panel in service mode.

Key specifications

  • Power: 1 × CR2032 (3.0 V / 0.2 Ah), battery not included
  • Typical battery life: approx. 2 years (max. 20 activations/day)
  • Frequency: 868.1 MHz (JABLOTRON protocol)
  • Max. RF power (ERP): 3 mW
  • Communication range: approx. 300 m (open area)
  • Dimensions: transmitter 27 × 55 × 16 mm, magnet 16 × 55 × 16 mm
  • Operating temperature: -10 °C to +40 °C
  • Classification: Grade 2 according to EN 50131-1
  • Housing color: grey

Maintenance note: replace the cell when low battery is reported and verify operation after replacement. System enrollment and adjustments should be carried out by a qualified technician.
