> >>>>JAB Detektor, magnetni,bežièni, sa dva univerzalna ulaza ,sivi

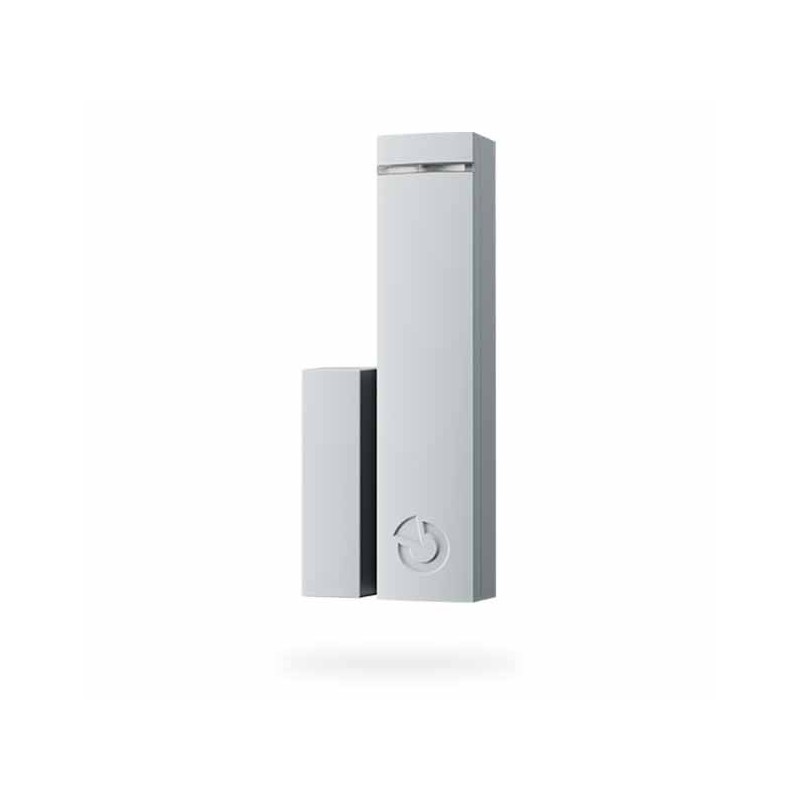

JAB Detektor, magnetni,bežièni, sa dva univerzalna ulaza ,sivi View larger

JAB Detektor, magnetni,bežièni, sa dva univerzalna ulaza ,sivi

JA-150M-GR

New product

The JA-150M-GR is a wireless magnetic detector (grey) with two configurable independent inputs and tamper, intended for opening and perimeter protection. Supports roller‑blind detection with CT‑01 and external sensors like LD‑81. Powered by 1x AA, RF range ≈300 m.

More details

More info

Overview

JA-150M-GR is a wireless magnetic contact from JABLOTRON designed for perimeter and openings protection. It provides two configurable independent inputs and a tamper contact. An onboard microprocessor processes and filters signals to reduce false alarms.

Functions and compatibility

The detector can detect roller‑blind movement when used with the CT‑01 shutter sensor. Inputs IN1 and IN2 can be used for external detectors (e.g. LD‑81 flood sensor) or other signal sources, increasing installation flexibility. The device occupies two separate enrollment positions in the control panel.

Technical specifications

  • Power supply: 1x alkaline battery LR6 (AA) 1.5 V (battery not included)
  • Typical battery life: about 2 years (up to ~10 activations/day)
  • Communication: 868.1 MHz (Jablotron protocol), RF range ≈300 m (open area)
  • Maximum cable length for external detector: 3 m
  • Dimensions: 109 × 24 × 22 mm (detector); magnet part: 16 × 55 × 15 mm
  • Weight without battery: approx. 55 g
  • Operating temperature: −10 °C to +40 °C
  • Classification: Grade 2; compliant with EN 50131 and related standards

Installation and setup

Configuration is done via DIP switches and the F‑Link software; installation and enrollment should be performed by a certified technician. If inputs are unused, jumpers are not required. IN1 and IN2 can be balanced with a 1 kΩ termination resistor.

Design

The grey GR variant is discreet for interior applications. The package typically includes two types of magnets (a ferrite magnet and a ring/neodymium type) to accommodate different mounting needs on doors, windows or shutters.
