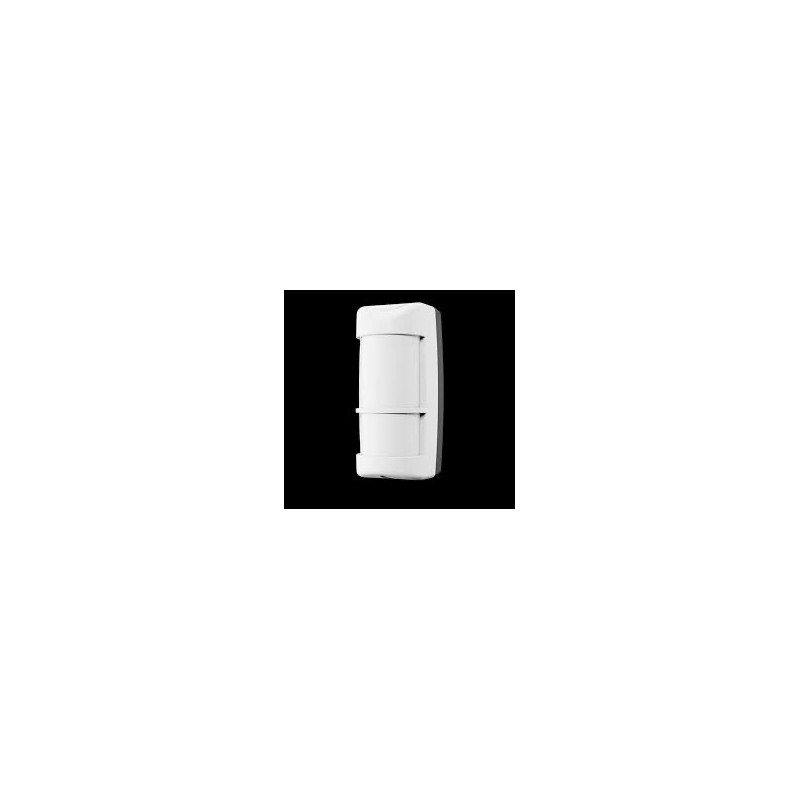

> JA-169P Outdoor two-zone PIR motion detector

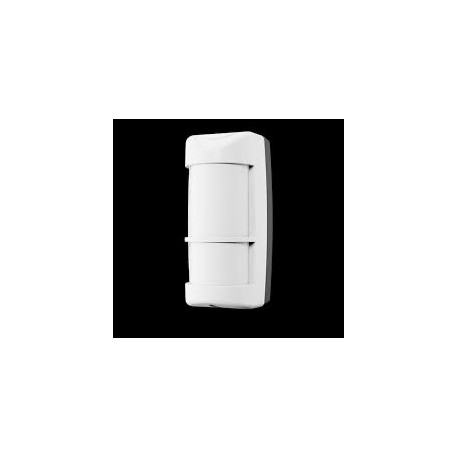

JA-169P Vanjski dvozonski PIR detektor pokreta View larger

JA-169P Outdoor two-zone PIR motion detector

JA-169P

New product

JABLOTRON ALARMS S.A.

The JA-169P is a wireless outdoor two‑zone PIR detector with AND logic — an alarm is signalled only when both detection zones are crossed simultaneously. It is powered by 1x CR123A, rated IP45, with up to 15 m/85° detection and 868.1 MHz Jablotron radio.

More details

More info

The JA-169P outdoor two‑zone PIR motion detector is designed to reliably detect human movement in external environments. Its optical module contains two independent PIR zones operating with AND logic to minimise false alarms — an alarm is signalled only when both zones are triggered simultaneously. Lenses and the polycarbonate housing are UV‑resistant for prolonged outdoor deployment.

Wireless communication uses the JABLOTRON protocol at 868.1 MHz with a maximum ERP of 25 mW, providing an RF range of up to approx. 300 m in open area (actual range depends on installation and environment).

Power is supplied by a single CR123A lithium battery (3.0 V / 1.4 Ah) — battery not included. Typical battery lifetime is about 3 years under normal usage. Quiescent and operational currents are approximately 30 µA and up to 55 mA respectively. Power‑save timer options (30 s or 180 s) are available to extend battery life.

The unit is rated for outdoor use with IP45 protection and an operating temperature range of -25 °C to +60 °C. Recommended mounting height is 1–1.2 m. Detection coverage reaches up to 15 m with an 85° angle divided into 11 segments; suitable target speed range is approx. 0.3–1.5 m/s.

Technical specifications

  • Model: JA-169P
  • Power supply: 1x CR123A (3.0 V / 1.4 Ah) — battery not included
  • Battery lifetime: approx. 3 years
  • Current (quiescent / max): 30 µA / 55 mA
  • Communication frequency: 868.1 MHz, JABLOTRON protocol
  • Max RF output (ERP): 25 mW
  • Communication range: approx. 300 m (open area)
  • Ingress protection: IP45
  • Operating temperature: -25 °C to +60 °C
  • Dimensions: 189 x 81 x 98 mm
  • Weight (without battery): 380 g
  • Detection: 15 m / 85°, 11 segments
  • Recommended installation height: 1–1.2 m
  • Additional: power‑save timer 30 s / 180 s, intended for professional installation

The JA-169P should be installed and commissioned by trained technicians as part of the JABLOTRON system. Its dual‑zone architecture helps reduce false alarms in challenging outdoor conditions while the wireless radio module simplifies integration into existing alarm systems.
