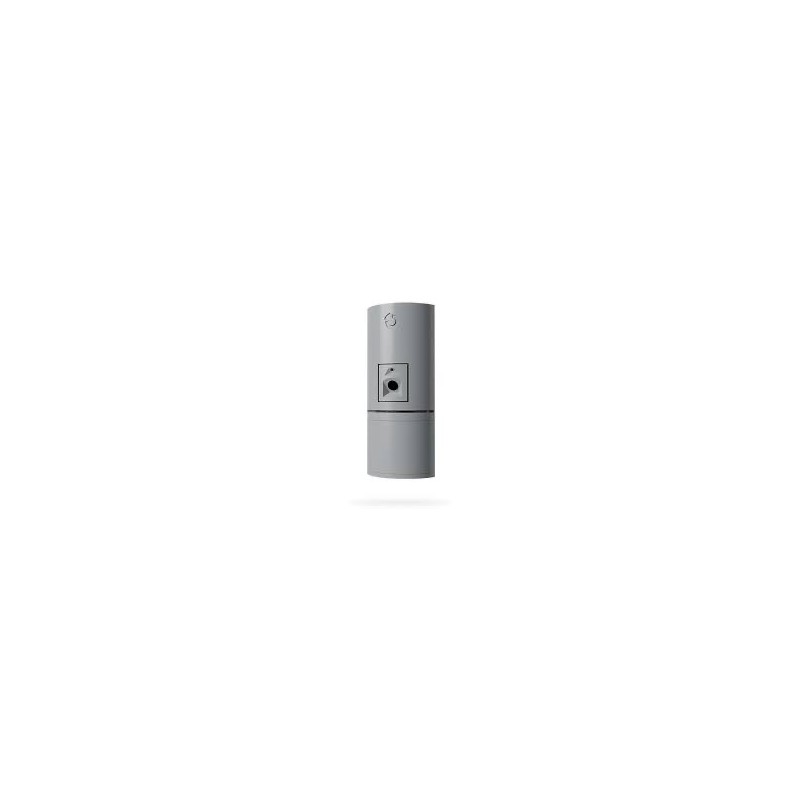

> JA-122PC-GR Bus combined PIR motion detector with 90° photoverification camera - grey
JA-122PC-GR Bus kombinirani PIR detektor pokreta s kamerom za fotoverifikaciju od 90° - sivi View larger

JA-122PC-GR Bus combined PIR motion detector with 90° photoverification camera - grey

JA-122PC-GR

New product

JABLOTRON ALARMS S.A.

The JA-122PC-GR is a BUS combined PIR motion detector with an integrated 90° photo-verification camera. It detects indoor human movement, captures colour images up to HQ 640×480 px and temporarily stores them before forwarding to the control panel, MyJABLOTRON or ARC.

More details

More info

JA-122PC-GR is a BUS (wired) combined PIR motion detector with an integrated photo camera for visual alarm verification. Intended for indoor use in JABLOTRON systems, it occupies one BUS position and must be installed by a trained, authorised technician.

The camera records colour images in two resolutions: LQ 320×240 px and HQ 640×480 px. A visible flash enables captures in low light. Images are stored in the detector's internal memory, forwarded to the control panel and can be sent from there to MyJABLOTRON or an ARC. The detector can also take photos on demand.

Configuration is managed via F-Link. Camera behaviour on alarm can be set to Instant (up to 3 activations during one alarm, max. 3 photos per activation, up to 9 photos to the control panel) or Delayed (e.g. entrance delay, up to 2 photos).

Technical overview

  • Type: 1PIRCAM2201MP (JA-122PC-GR)
  • Power: 12 V BUS (8…15 V)
  • Current consumption: quiescent 5 mA; maximum 250 mA (high flash intensity)
  • PIR detection angle/coverage: 90° / 12 m; camera horizontal capture angle: 90°
  • Camera resolution: LQ 320×240; HQ 640×480 px; photo size LQ/HQ: 5–20 kB / 5–64 kB
  • Photo transmission to control panel: typical (LQ) up to 20 s (10 s); ideal (HQ) up to 130 s (60 s)
  • Typical transfer to server: 15 s (GPRS); 2 s (LAN)
  • Flash range: max. 3 m
  • Dimensions, weight: 150 × 65 × 44 mm; 125 g
  • Recommended installation height: 2.5 m; recommended screws: 2 × ø 3.5 × 40 mm (countersunk)
  • Classification: Security grade 2 / Environmental class II (EN 50131-1)
  • Operating temperature: -10 °C … +40 °C; humidity: up to 75% RH, no condensation
  • Certification: Trezor Test s.r.o. (no. 3025); complies with EN 50131-1, EN 50131-2-2, EN 50130-4, EN 55032, EN IEC 63000

Before installation, always switch system power off. When planning the installation, size the power supply and cabling to accommodate the maximum flash current (250 mA). Captured photos are available in the control panel log (Flexi_log / Foto) and can be retrieved or sent automatically depending on the configuration.

Photo-verification is available only after the system is registered to MyJABLOTRON or when ARC services are activated. Integration is intended for JA‑100/JA‑100+ systems and must be performed by authorised personnel.
