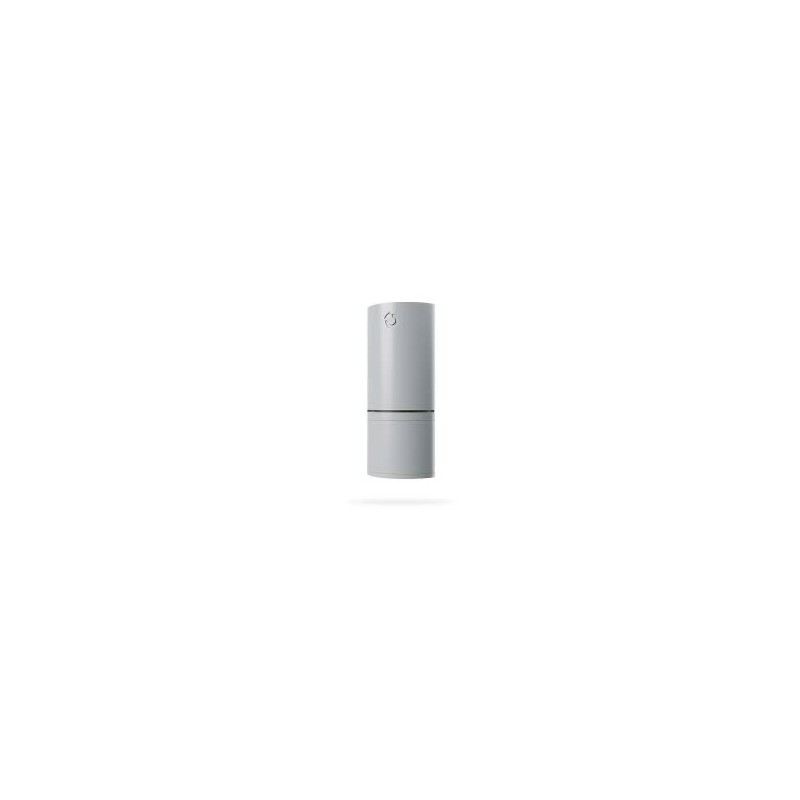

> JA-122PW-GR Bus dualni PIR i MW detektor pokreta - sivi
JA-122PW-GR Bus dualni PIR i MW detektor pokreta - sivi View larger

JA-122PW-GR Bus dualni PIR i MW detektor pokreta - sivi

JA-122PW-GR

New product

JABLOTRON ALARMS S.A.

JA-122PW-GR is a bus dual PIR+MW motion detector for the JABLOTRON 100+ system. PIR detection is confirmed by an MW module to reduce false alarms. Standard white‑light immunity up to 6000 lux; detection range up to 12 m.

More details

More info

JA-122PW-GR is a bus device for the JABLOTRON 100+ series, designed to detect human movement in indoor environments. The unit combines passive infrared (PIR) sensing with a microwave (MW) module: when PIR detects motion, the MW module activates to confirm the event according to the configured logic, significantly reducing false alarms.

The detector is intended for professional installation and commissioning. It supports adjustment of MW sensitivity and selection of MW activation mode via system configuration (F-Link or central unit settings). PIR detection can be disabled if MW‑only operation is required.

The product features a white lens that provides the standard white‑light immunity defined by the norm (up to 6000 lux). The detector operates with a pulse response and occupies a single position on the bus. Coverage testing and sensitivity tuning in test mode are required during commissioning to avoid unwanted triggers.

Technical specifications

  • Power supply: from the control panel bus 12 V DC (9…15 V).
  • Current consumption: standby 5 mA; for cable choice 16 mA.
  • Recommended installation height: 2.2 – 2.5 m above floor level; detection range up to 12 m.
  • Detection angle: PIR 90°/12 m; MW 80°/12 m.
  • MW frequency: 24.125 GHz; maximum MW ERP: 30 mW.
  • Dimensions: 150 × 63 × 40 mm; weight: 120 g.
  • Classification: security grade 2 / environmental class II (EN 50131‑1).
  • Certification and compliance: Trezor Test s.r.o. (no. 3025); ETSI EN 300 440, EN 50130‑4, EN 55032, EN 62368‑1, EN 50581, EN 50131‑1, EN 50131‑2‑4; ERC REC 70‑03.

JA-122PW-GR is suitable for general indoor protection where increased resistance to false alarms is required. Final coverage verification and sensitivity adjustment must be performed by an authorised installer during commissioning.
