> JA-152P-GR Wireless PIR motion detector - grey
JA-152P-GR Bežični PIR detektor pokreta - sivi View larger

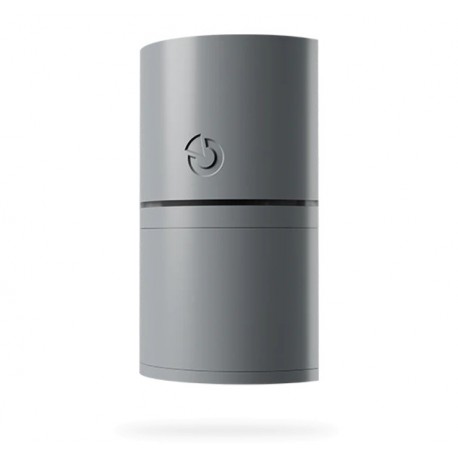

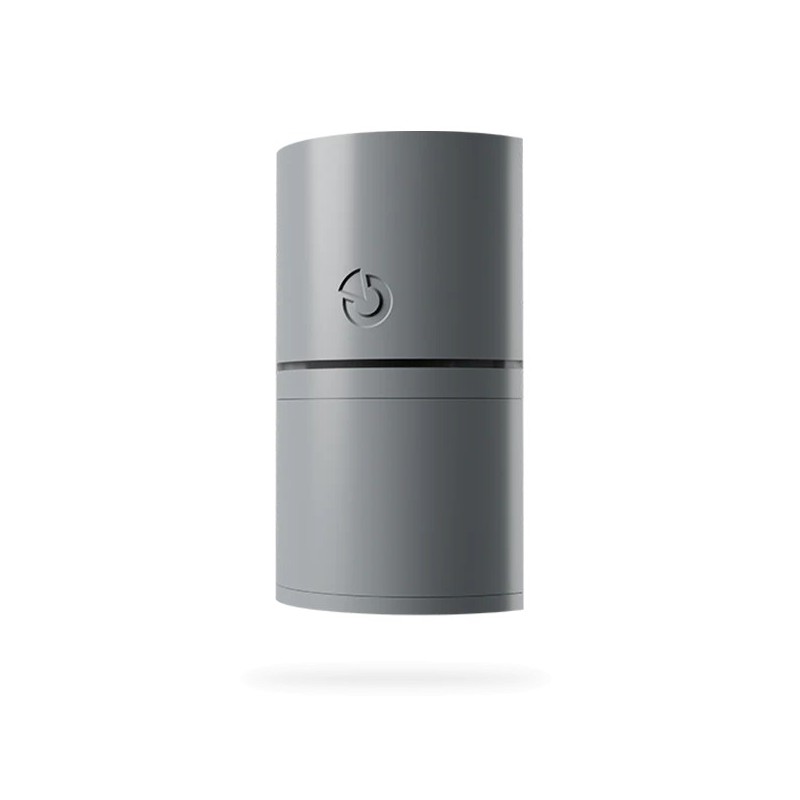

JA-152P-GR Wireless PIR motion detector - grey

JA-152P-GR

New product

JABLOTRON ALARMS S.A.

The JA-152P-GR is an addressable wireless PIR motion detector for the JABLOTRON 100+ system. It provides 90°/12 m coverage, two levels of false‑alarm immunity, PG output control and runs on a CR123A battery with up to 4 years typical life.

More details

More info

Purpose and compatibility

The JA-152P-GR is a bidirectional, addressable PIR detector designed to detect human motion indoors and integrate with the JABLOTRON 100+ platform. It is configurable with F-Link 2.0.0 and later and occupies one address in the system.

Mounting and placement

Standard installation is in a room corner. For wall mounting use the JA-196PL-S bracket (partly recessed for a neat finish). For ceiling mounting or inclined detection angles use the JA-191PL articulated holder. Recommended installation height: 2.2–2.5 m above floor level. Recommended fixings: 2x ø 3.5 x 40 mm countersunk screws.

Detection optics and behaviour

The detector uses a fixed lens giving 90° coverage and up to 12 m range (three detection curtains). It features impulse activation and two configurable false‑alarm immunity levels. Standard white‑light immunity is up to 6000 lux.

Power and radio

Powered by one CR123A lithium battery (3 V / 1500 mAh) — battery not included. Typical battery lifetime up to 4 years (smartwatch mode, 20 °C). Low battery threshold is below 2.4 V. Quiescent current: 30 μA; maximum current: 100 mA. Radio operates at 868.1 MHz using the JABLOTRON protocol with an approximate open‑area range of 300 m. The detector can also be used to control programmable PG outputs of the control panel.

Environment and compliance

Operating temperature: -10 °C to +40 °C; recommended average humidity up to 75 % RH, non‑condensing. Classified as Security Grade 2 / Environmental Class II (EN 50131‑1). The product complies with the standards listed in the official datasheet and may be used according to ERC REC 70‑30 where applicable.

Practical notes

  • Battery is not included — check stock availability when ordering.
  • The lens is non‑replaceable; plan coverage based on the fixed 90°/12 m pattern.
  • Radio range depends on site conditions; verify link quality during commissioning.
