> >>>>JAB Pristupni modul sa RFID èitaèem crni

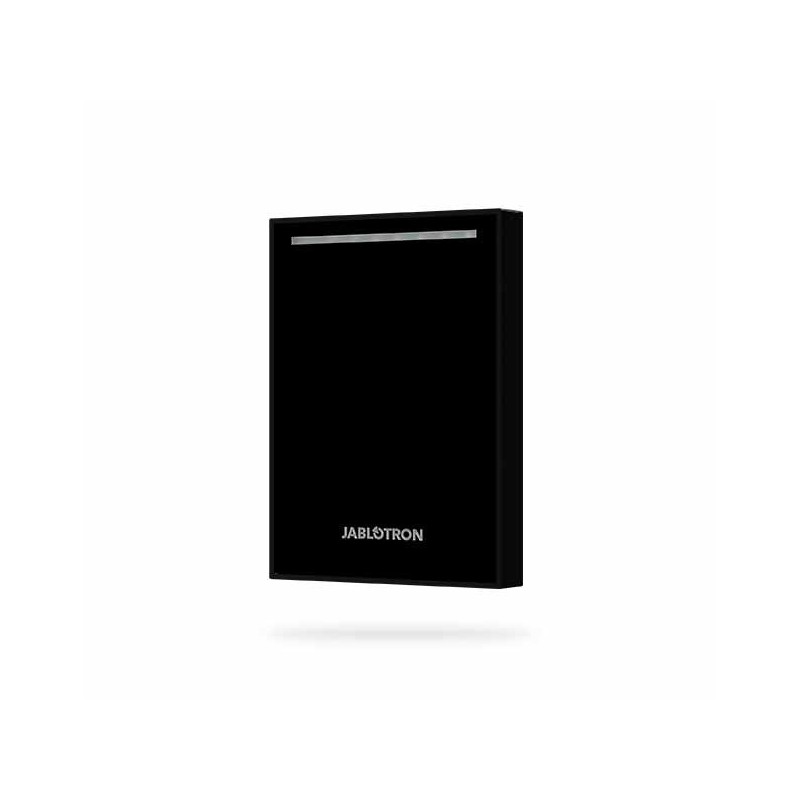

JAB Pristupni modul sa RFID èitaèem crni View larger

JAB Pristupni modul sa RFID èitaèem crni

JA-120E-BK

New product

JABLOTRON ALARMS S.A.

The JA-120E-BK is an outdoor bus access module with dual read technology (125 kHz RFID and 13.56 MHz MIFARE). It features a scratch-resistant synthetic tempered-glass front, IP55 protection and is powered from the control panel bus for Jablotron 100+ integration.

More details

More info

JA-120E-BK is a bus outdoor access reader designed for integration with JABLOTRON 100/100+ systems. It provides dual reading support: 125 kHz (RFID) and 13.56 MHz (MIFARE/NFC), allowing use of both LF and HF media on a single unit.

The front plate is made of synthetic tempered glass that resists scratches and wear, making the reader suitable for exposed or high-traffic locations. The enclosure rating is IP55 and the device operates in temperatures from −25 °C to +70 °C.

Powered from the control panel digital bus (9–15 V), the reader has low current consumption: 45 mA standby and up to 95 mA peak. It can trigger PG outputs on the control panel to operate door locks or other actuators.

Installation involves mounting to a prepared mounting pad and securing with a locking screw; surface-mount boxes and cable entry accessories are available (e.g. WRE-KU68-BK, WRE-SC-BK). Enrollment and configuration are done via the F-Link software. Installation should be performed by trained, certified technicians.

Applications & compatibility: access control for residential and commercial premises, door-release control and seamless integration with Jablotron 100+ alarm and control panels. Supports cards and tokens operating on the specified frequencies.

  • Model: JA-120E-BK
  • Frequencies: 125 kHz / 13.56 MHz (MIFARE)
  • Power: bus 9–15 V; consumption 45 mA (standby) / 95 mA (max)
  • IP55, dimensions 96 × 67 × 13.5 mm, weight 140 g
  • Operating temperature: −25 °C to +70 °C
