> >>>>External keypad with RFID JA-121E-BK - white
JAB Pristupni modul sa RFID èitaèem, vanjski, bijeli View larger

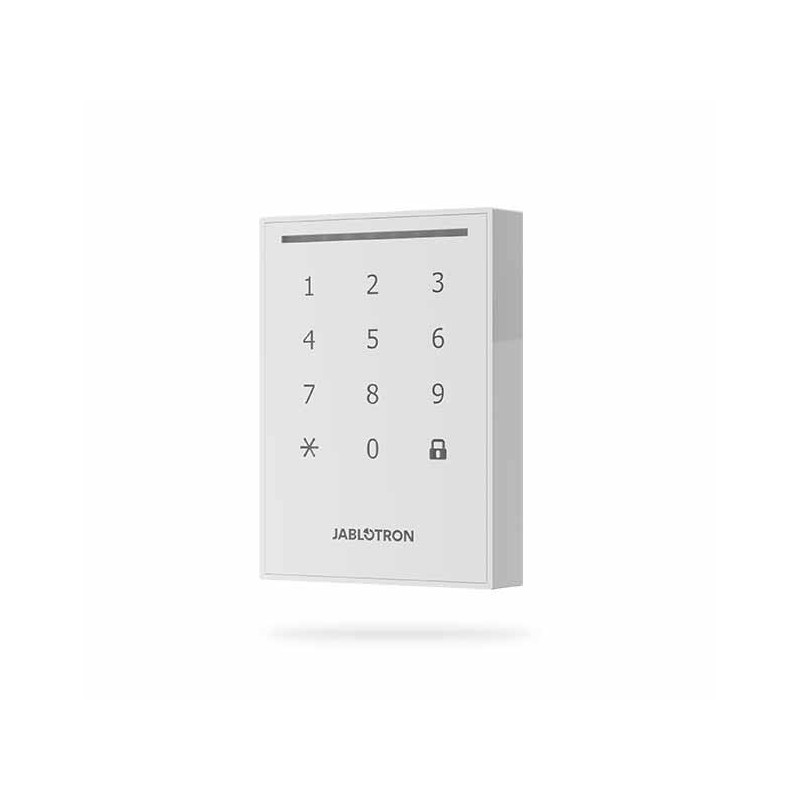

External keypad with RFID JA-121E-BK - white

JA-121E-WH

New product

JABLOTRON ALARMS S.A.

The JA-121E-WH is a BUS outdoor keypad with integrated RFID (125 kHz) and MIFARE/NFC (13.56 MHz) reader, designed for the JABLOTRON JA-100 system. The tempered synthetic glass front resists scratches. Rated IP55, dimensions 96×67×19 mm; powered via BUS.

More details

More info

Overview

JA-121E-WH is a BUS-connected outdoor keypad with an integrated RFID and MIFARE/NFC reader for use with the JABLOTRON JA-100 alarm and access ecosystem. It features a capacitive touch keypad for PIN entry and two reading zones to support both 125 kHz and 13.56 MHz (MIFARE® Classic) media.

Capabilities

The keypad allows user authorization with cards or tokens, PIN entry and can control system partitions or trigger PG outputs for access control (e.g. door release). The front plate is made of synthetic tempered glass to reduce visible scratches and improve durability in outdoor conditions.

Key specifications

  • Frequencies: RFID 125 kHz and MIFARE/NFC 13.56 MHz
  • Power: BUS 9–15 V
  • Current consumption: ~35 mA (standby), up to 105 mA (peak)
  • Dimensions: 96 × 67 × 19 mm; weight ~170 g; cable length 2.0 m
  • Protection: IP55; operating temperature −25 °C to +70 °C
  • Classification: Security grade 2 / Environmental class IV (EN 50131)

Installation and compatibility

Mount on the supplied mounting plate and connect to the BUS using the recommended terminal modules and installation box (e.g. JA-110Z, JA-19xPL). If the reader is located outside the secured area, use a BUS isolator. Installation must be performed by a trained/certified technician following the manufacturer's instructions.

Applications

Suitable for entrances requiring card/token access combined with PIN input under outdoor conditions. Supports JABLOTRON 100 cards and MIFARE® Classic transponders; intended for residential and commercial access control integrated with JA-100 systems.
