> >>>>Keyboard + RFID reader

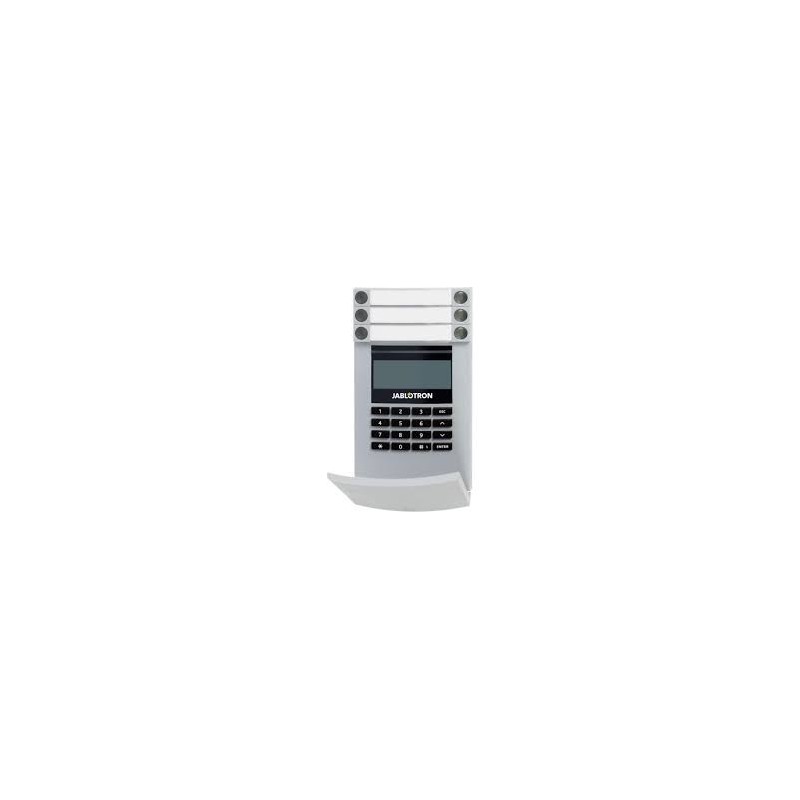

Keyboard with RFID reader and display - gray color View larger
Previous Next

Keyboard + RFID reader

JA-114E-GR

New product

JABLOTRON ALARMS S.A.

JA-114E-GR is an addressable BUS access module with a readable LCD, quality keypad and built-in 125 kHz RFID reader. Supplied with one control segment and expandable with up to 20 JA-192E segments. Connects to and is powered from the system BUS (9–15 V) for JABLOTRON 100+.

More details

More info

JA-114E-GR is an addressable BUS access module for local control and user authorization in JABLOTRON 100+ alarm systems. It combines a clear LCD, a robust keypad and an internal 125 kHz RFID reader in a single unit that occupies one address position on the BUS.

The module ships with one operating segment and can be extended with up to 20 JA-192E segments. Segments enable control of partitions, zones and programmable PG outputs and display system status, providing straightforward local management of security functions without additional control devices.

JA-114E-GR connects to and is powered from the digital BUS (operating voltage 9–15 V). The unit includes a power-saving mode and is addressable. The tilting keypad cover can be removed for permanent keypad access; the cover also serves as the RFID reading surface for cards or tags.

Typical uses include entry control points in commercial and residential buildings, local arming/disarming stations and access-zone control. The module mounts on the supplied plastic backplate; when installing multiple segments, follow the manufacturer’s recommended assembly and addressing sequence.

Key technical specifications

  • Model: JA-114E-GR (grey)
  • Power: supplied from the control panel digital BUS, 9–15 V
  • Current consumption: standby 15 mA; cable selection 100 mA; each additional segment 0.5 mA
  • RFID frequency: 125 kHz
  • Operating temperature: -10 °C to +40 °C
  • Compatibility: JA-100 / JA-100+ control panels (e.g. JA-101K, JA-103K, JA-106K, JA-107K)
  • Standards / classification: EN 50131-1 Environment II, Grade 2

JA-114E-GR provides a compact, modular and reliable interface for access control and local alarm management without additional local power supplies. Colour: discreet grey; matching JA-192E extension segments are available for uniform installations.
