> >>>JA-103K-7AH Control panel
JAB Alarmna centrala sa LAN komunikatorom View larger

JA-103K-7AH Control panel

JA-103K-7AH

New product

JA-103K-7AH is a JABLOTRON 100+ control panel with a built-in LAN communicator and enlarged enclosure for a 12 V / 7 Ah backup battery. Supports up to 50 devices, 50 users, 8 partitions and 32 programmable PG outputs. Configuration via F-Link software.

More details

More info

Overview

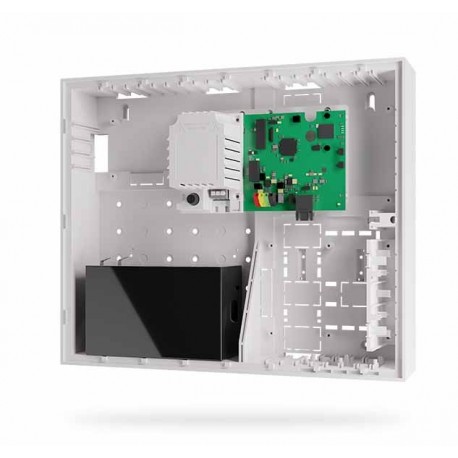

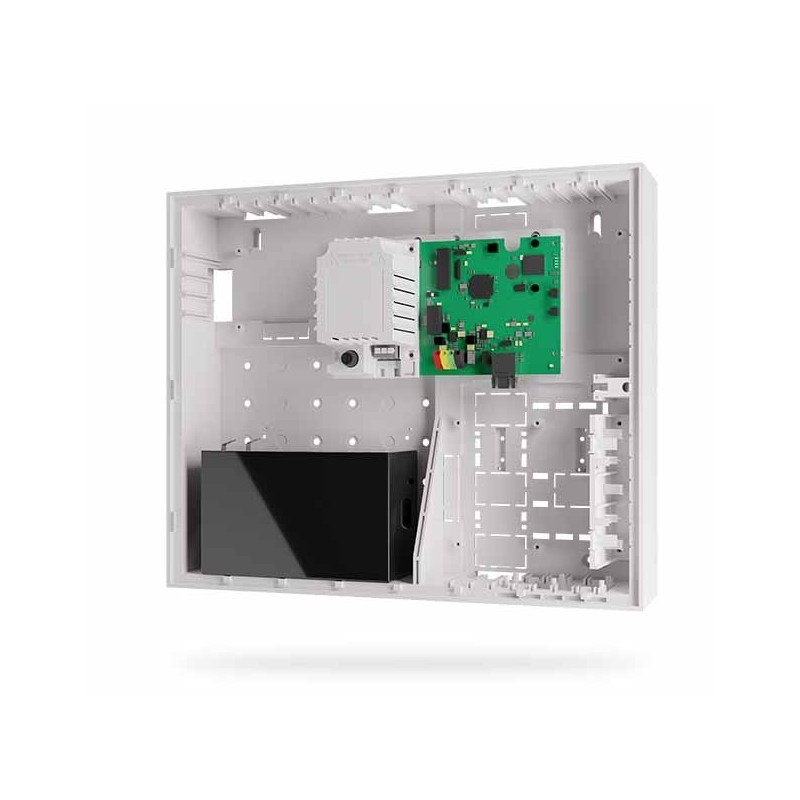

The JA-103K-7AH is a control panel from the JABLOTRON 100+ family designed for homes, offices and small commercial sites. It features an enlarged housing with space for a 12 V / 7 Ah backup battery and an integrated LAN communicator for network connectivity and remote access.

Installation and configuration

The unit must be installed by an authorized Jablotron technician. System programming, device addressing, partitioning and calendar event setup is performed using F-Link software (recommended from version 2.0.0 onward).

Key features

  • Support for up to 50 wireless or BUS devices
  • Up to 50 user accounts
  • 8 partitions (sections) for zoning
  • 32 programmable PG outputs for automation and control
  • 20 independent calendar events
  • 8 user SMS and voice reports
  • Support for up to 5 ARCs and 5 selectable ARC protocols
  • BUS terminal board, connector for internal radio module JA-11xR and connector for GSM/GPRS communicator JA-192Y
  • MiniUSB, microSD slot, LAN (Ethernet 10/100) and status LEDs

Compatibility & notes

Certain devices are not compatible with this panel (e.g. JA-180A, JA-154J, JA-190X). Some modules require minimum firmware versions to operate correctly—verify firmware requirements before installation. The panel includes tamper protection and is delivered with standard accessories listed in the installation manual.

Dimensions and power: enclosure 357 × 297 × 105 mm; recommended backup battery 12 V, 7 Ah (lead‑gel).

Follow Jablotron installation and commissioning procedures and use authorized tools and F-Link software for configuration.
