> >>>JA-106K alarm control panel

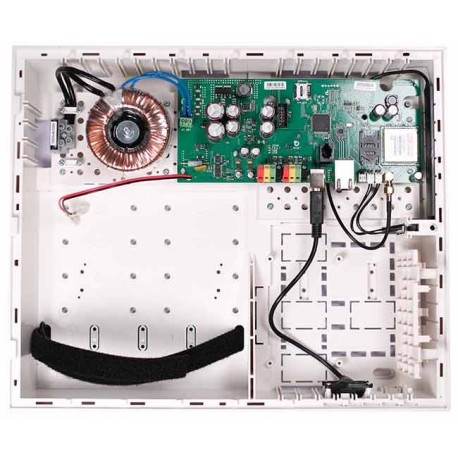

JAB Alarmna centrala sa GSM/GPRS/LAN komunikatorom JA-106K View larger

JA-106K alarm control panel

JA-106K

New product

JABLOTRON ALARMS S.A.

This product has been discontinued. Recommended replacement: JA-107KRY. The JA-106K is a scalable alarm control panel with built-in GSM/GPRS and LAN communicator for larger residential and small commercial installations. It supports up to 120 wireless or BUS zones, up to 300 user codes and up to 15 sections.

More details

Data sheet

Zones 120
Number of users 300
Sections 15
PG outputs 32
ARC 5
BUS connection terminal 2
LAN YES
GSM/3G GPSR YES
Radio modul NE

More info

JA-106K Control Panel

This product has been discontinued. Replacement model: JA-107KRY.

The JA-106K is part of the JABLOTRON 100+ family and is designed for scalable security installations. It supports a combination of up to 120 wireless or BUS hardwired zones, up to 300 user codes and up to 15 sections to separate protected areas within a site.

Features and automation

The panel provides up to 32 programmable outputs and 20 independent calendars for time-based automation and scheduled operation. The system can report events to up to 30 users by SMS, and up to 15 users can receive voice and SMS reporting.

Communication and storage

The main board includes an integrated GSM/GPRS and LAN communicator enabling voice, SMS and GPRS reporting to end users and Alarm Receiving Centres (ARC). A 1 GB memory card is fitted on the board for storing event logs, voice menus/messages and image snapshots.

Included terminals and expandability

  • 2x independent BUS terminals
  • 1x terminal for VOICE module
  • 1x terminal for the built-in radio module (JA-110R)
  • 1x terminal for PSTN communication module (JA-190X)

Thanks to its modular design, the JA-106K can be extended with compatible modules from the JABLOTRON 100+ platform to meet the needs of installations requiring many zones and users as well as flexible reporting channels. For installer-level configuration consult official technical documentation.

Accessories
