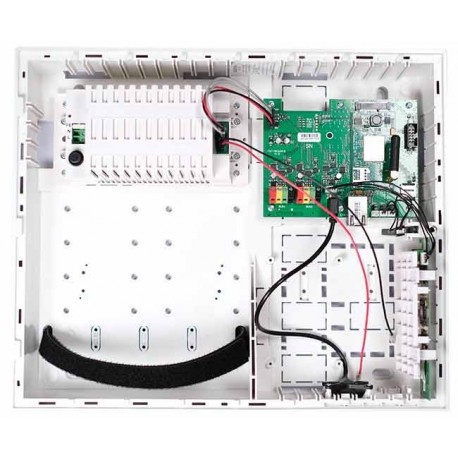

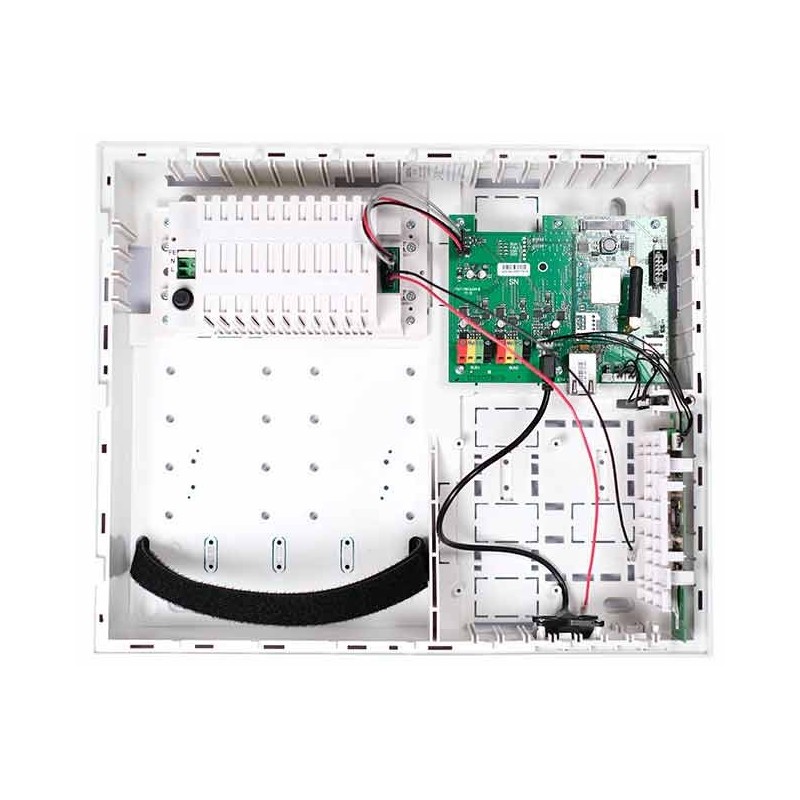

JA-107KRY Control panel
JA-107KRY is a hybrid Jablotron 100+ control panel with integrated LAN communicator, JA-192Y GSM/GPRS backup and JA-111R radio module. Designed for large residential complexes, offices and commercial sites. System programming and sizing are performed using F‑Link (from v2.0.0).
Data sheet
| Zones | 230 |
| Number of users | 600 |
| Sections | 15 |
| PG outputs | 128 |
| ARC | 5 |
| BUS connection terminal | 3 |
| LAN | YES |
| GSM/3G GPSR | YES/OPT |
| Radio modul | YES |
More info
Overview
The JA-107KRY is the flagship hybrid control panel of the JABLOTRON 100+ family. It integrates LAN communication, a JA-192Y GSM/GPRS communicator and a JA-111R radio interface, delivering a scalable solution for multi‑section installations that require robust reporting and multiple communication paths.
Key specifications
- Support for 120 wireless and up to 230 bus devices
- Up to 600 users and 15 sections (partitions)
- 128 programmable PG outputs
- 64 mutually independent calendar events
- SMS reports to up to 50 users and voice reports to up to 15 users
- Configurable up to 5 ARCs with 5 selectable protocols per ARC
- Two mutually independent terminal boards for bus connection
Functions and use cases
The panel offers maintenance mode, day/night operation, entry/exit delays, automatic arming and advanced calendar automation for scheduled actions. Redundant communication via LAN and GSM improves reliability for commercial and larger residential installations.
Installation and compatibility
Installation and configuration must be performed by an authorized Jablotron technician. Use only supported modules when expanding the system and follow official installation guidelines.
Not compatible with
- JA-180A (wireless outdoor siren)
- JA-154J (bi-directional remote control)
- JA-190X (PSTN communicator module)
Intended use: Suitable for demanding residential and commercial projects that need a robust hybrid alarm system with extensive integration and reporting capabilities.
