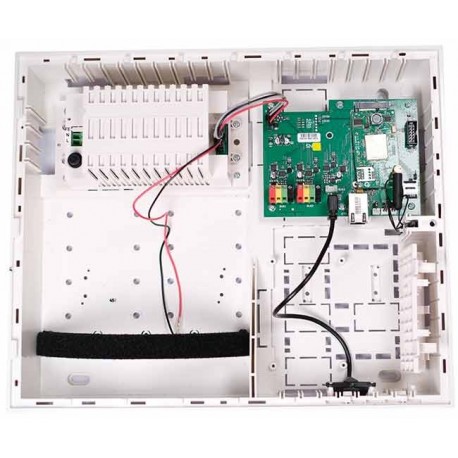

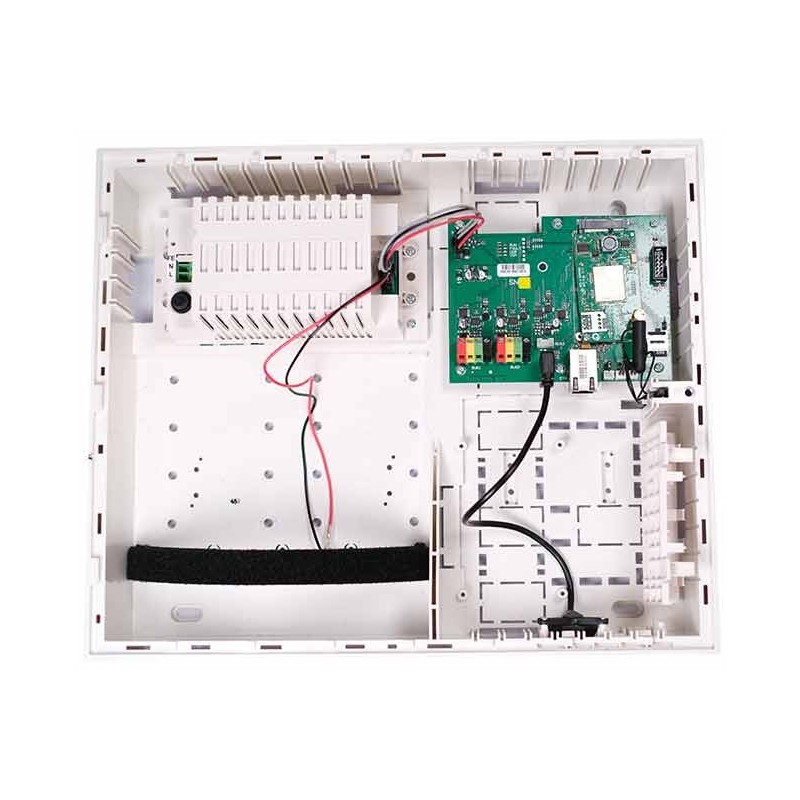

JA-107K Control panel
JA-107K is a high‑capacity control panel from the JABLOTRON 100+ family with an integrated LAN communicator. Suited for large residential complexes, office buildings and businesses; supports mixed BUS and wireless installations and is configured via F‑Link.
Data sheet
| Zones | 230 |
| Number of users | 600 |
| Sections | 15 |
| PG outputs | 128 |
| ARC | 5 |
| BUS connection terminal | 3 |
| LAN | YES |
| GSM/3G GPSR | YES/OPT |
| Radio modul | NE |
More info
JA-107K is the extended control panel of the JABLOTRON 100+ series designed for demanding multi‑section installations in large buildings and commercial sites. System configuration and sizing are performed in the F‑Link software (from version 2.0.0). Installation and commissioning must be carried out by a certified Jablotron installer.
Capacities
The panel supports up to 120 wireless devices and up to 230 BUS devices. It manages up to 600 users and 15 independent sections. Available resources include 128 programmable PG outputs, 64 independent calendar events, up to 50 SMS user reports and up to 15 voice reports. The system allows configuration of up to 5 ARCs with 5 selectable ARC protocols.
Hardware interfaces and power
The enclosure provides two mutually independent BUS terminal boards; a third terminal board can be added via JA-110Z‑D. There is a connector for the built‑in radio module JA-111R and a connector for a GSM/GPRS communicator JA-192Y (LTE communicators may be used as required).
Supply: 110–230 V AC (50/60 Hz), max current approx. 0.85 A. Back‑up battery: 12 V / 18 Ah (lead‑gel). BUS voltage range: 12.0–13.8 V. Maximum continuous current from the panel: 2000 mA (3000 mA for 60 minutes; max 2000 mA per single BUS).
Functions and management
Features include maintenance mode, day/night operation, short‑exit response, automatic arming and advanced calendar functions. Programming and configuration backups are handled in F‑Link, simplifying professional setup and maintenance for larger installations.
Compatibility notes
- Recommended expansion modules: JA-111R (radio interface), JA-192Y / JA-194Y (GSM/LTE communicators), JA-110Z‑D (terminal extension).
- Check device compatibility during system design; certain modules are not supported by this panel.
- Intended for professional installation and commissioning by certified technicians.
This description summarises verified technical data. Refer to the manufacturer's technical documentation for full installation instructions and declarations of conformity.
