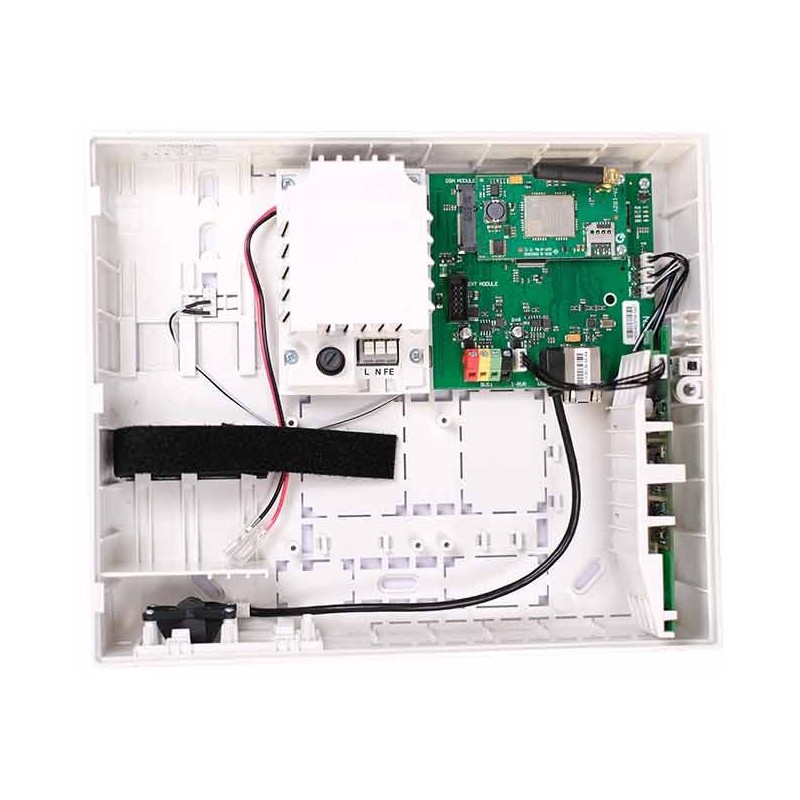

JA-103KRY Control panel
Data sheet
| Zones | 50 |
| Number of users | 50 |
| Sections | 8 |
| PG outputs | 32 |
| ARC | 5 |
| BUS connection terminal | 1 |
| LAN | YES |
| GSM/3G GPSR | YES/OPT |
| Radio modul | YES |
More info
Overview
JA-103KRY is a mid-size hybrid control panel from the JABLOTRON 100+ series combining LAN, GSM/GPRS and radio communication. It supports mixed wired and wireless installations and multiple reporting channels, making it suitable for residential and small commercial applications.
Key specifications
- Support for 50 wireless or bus devices
- 50 system users
- 8 sections (areas)
- 32 programmable PG outputs
- 20 independent calendar events
- 8 user SMS and voice reports
- Configurable up to 5 ARCs with 5 selectable ARC protocols
Included modules and hardware

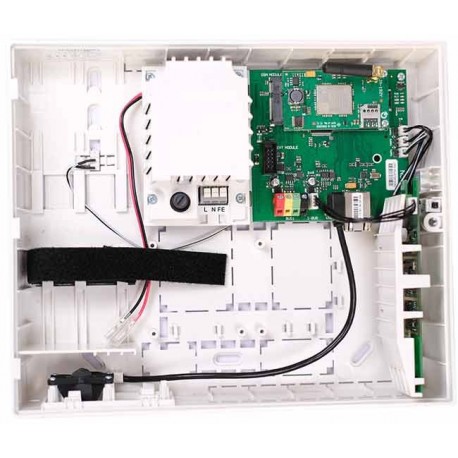

The JA-103KRY configuration includes a JA-111R radio module and a JA-192Y GSM/GPRS communicator, together with built-in LAN. The panel provides a BUS terminal for wired peripherals and space for a backup battery. Standard connections for power and signalling are provided on the main board.
Functions and usage
System features include day/night modes, short departure response, automatic configuration aids and advanced calendar scheduling. Reporting options include SMS and voice messages to users and event reporting to alarm receiving centres (ARC).
Compatibility
Not compatible with some older peripherals: JA-180A (wireless outdoor siren), JA-154J (two-way remote), JA-190X (PSTN communicator module).
Conditional compatibility: JA-112E keypad requires FW LU61501 or newer; JA-113E keypad requires FW LU61601 or newer; JA-118N (PG bus output module) is compatible with LY68003 and newer (FW LY68002 and older work only when the PG range in F-Link is set to a maximum of 32); JA-110I (section or PG bus indicator) compatible only if the PG range in F-Link is set to a maximum of 32.
Note: Technical and firmware requirements should be verified in the official installation manual before deployment.
Download
Accessories
-
Reference: ACCU-12V2Ah3
Brand: Power Solutions Corp.
12V 2.3Ah Sealed Lead‑Acid Battery
Sealed lead‑acid (VRLA/AGM) 12V 2.3Ah battery for backup use in alarm panels, small UPS units and other smart systems. Maintenance‑free in normal use; recommended replacement every 1–2 years.
-
Reference: JA-153E
Brand: JABLOTRON ALARMS S.A.
Wirelss access module JA-153E
Two-way wireless keypad module with an integrated 125 kHz RFID reader for Jablotron 100+. Supports up to 20 additional JA-192E control segments, features Smart Radio Wake-up (SRW) and is powered by 2x AA batteries (typ. 1–2 years).
-
Reference: JA-114E
Brand: JABLOTRON ALARMS S.A.
Access module with display, keypad and RFID JA-114E
The JA-114E is a BUS keypad with a backlit LCD, integrated 125 kHz RFID reader and one control segment, expandable with up to 20 JA-192E segments. It is powered from the control panel BUS (9–15 V) and includes a power‑saving mode; Security Grade 2 certified.
-
Reference: JA-110P
Brand: JABLOTRON ALARMS S.A.
PIR motion detector JA-110P
The JA-110P is a wired BUS PIR motion detector for indoor protection. Standard lens covers 110° up to 12 m; powered from control panel BUS 12 V DC (9 ... 15 V). Optional SMART MEMORY INDICATION (SMI) and interchangeable lenses JS-7904, JS-7906, JS-7901.
-
Reference: JA-110A
Brand: JABLOTRON ALARMS S.A.
Jablotron JA-110A internal BUS siren
Addressable JA-110A internal BUS siren for JABLOTRON 100+. Provides audible alarm signalling, entry/exit delay tones and system status indication. Features a programmable pushbutton, front and rear tamper and is powered/communicates via BUS 9–15 V.
-
Reference: JA-1X1A-C-ST-B
Brand: JABLOTRON ALARMS S.A.
Steel cover, blue flash JA-1X1A-C-ST-B
Stainless-steel protective cover for Jablotron outdoor sirens with integrated blue LED flasher. Designed as a replacement or cosmetic upgrade for JA-1X1A base modules (e.g. JA-111A, JA-151A, JA-163A), it enhances visual signalling and external appearance.
-
Reference: JA-1X1A-C-WH-B
Brand: JABLOTRON ALARMS S.A.
White cover, blue flash JA-1X1A-C-WH-B
Protective cover for siren with blue flash.
-
Reference: JA-111A-BASE-RB
Brand: JABLOTRON ALARMS S.A.
Outdoor siren-base BUS JA-111A-BASE-RB
BUS external siren - base with electronics.
