> >>>JA-106KR-3G Control panel
JAB Alarmna centrala sa 3G/LAN kom. i radio modulom JA-106KR-3G View larger

JA-106KR-3G Control panel

JA-106KR-3G

New product

JABLOTRON ALARMS S.A.

The JA-106KR-3G is a Jablotron control panel with an integrated 3G/LAN communicator and radio module. It supports up to 120 wireless or BUS zones, up to 300 user codes and up to 15 partitions. Remote control is available via SMS, voice menu and MyJablotron; up to 32 programmable PG outputs.

More details

Data sheet

Power supply 230VAC + 12VDC Accu Backup
Zones 120
Number of users 300
Sections 15
PG outputs 32
ARC 5
BUS connection terminal 2
LAN YES
GSM/3G GPSR YES
Radio modul YES

More info

JA-106KR-3G control panel

Note: This model has been discontinued; recommended replacement: JA-107KRY.

The JA-106KR-3G combines GSM (2G/3G) and LAN communicators with a radio module to provide voice, SMS and data communication with end users or alarm receiving centres. System configuration and sizing are performed using F-Link software.

Main features

  • up to 120 bus or wireless zones
  • up to 300 user codes
  • up to 15 partitions (sections)
  • up to 32 programmable PG outputs
  • 20 independent schedules
  • SMS reports from the system to up to 30 users; voice reports available for up to 15 users
  • remote control via SMS, voice menu and MyJablotron portal
  • 4 configurable options for the central monitoring station (CDS) and 5 selectable communication protocols

Included hardware and connectivity

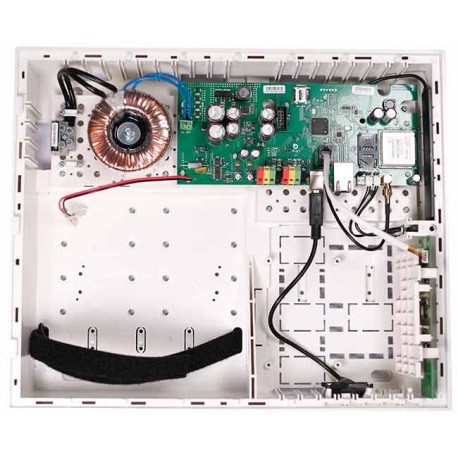

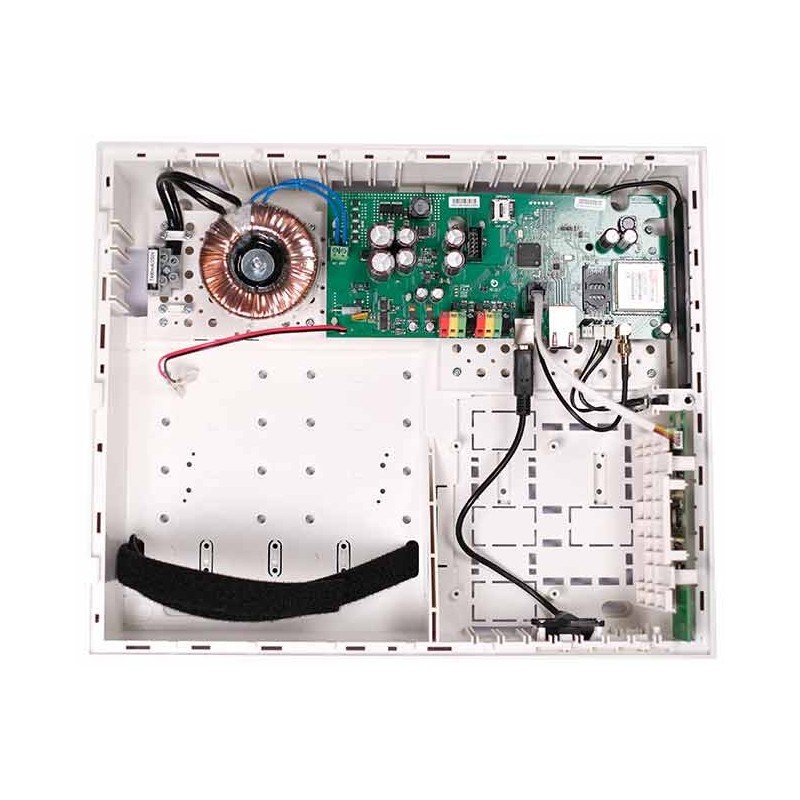

The panel contains a JA-111R radio module and a 4 GB memory card for event logs, voice messages and storing photos. It provides two independent BUS connectors and one internal connector dedicated to the radio module.

Additional interfaces include a LAN connector, a USB connector for settings and photo transfer, and a connector for adding another communicator or module (e.g. PSTN).

Suitable for installations requiring combined communication paths and modularity. As the model is discontinued, consider the recommended replacement for new projects.
