> >>>Jablotron JA-100KR — control panel (LAN + radio)
JAB Alarmna centrala sa LAN komunikatorom JA-100KR View larger

Jablotron JA-100KR — control panel (LAN + radio)

JA-100KR

New product

JABLOTRON ALARMS S.A.

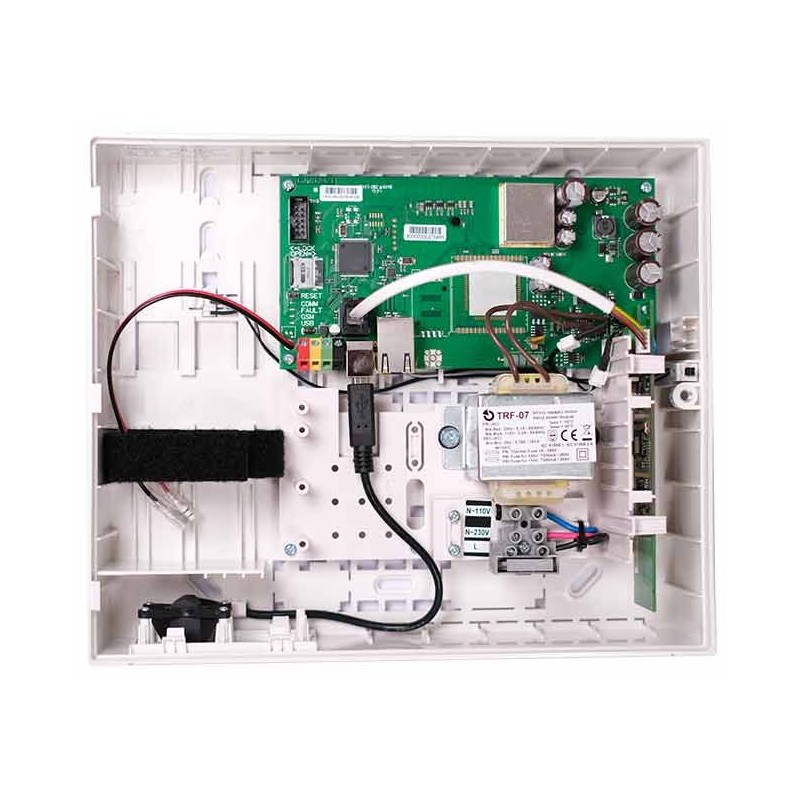

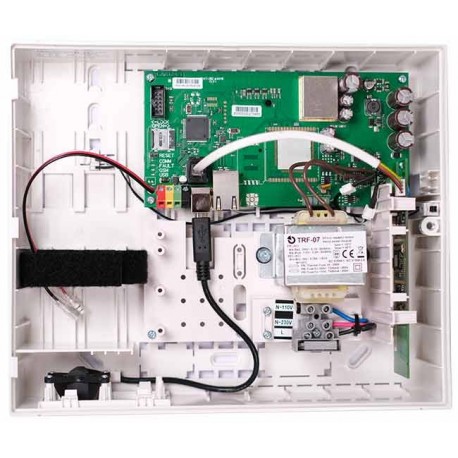

The JA-100KR is the smallest control panel in the JABLOTRON 100+ range with a built-in LAN communicator and integrated JA-111R radio module. It supports up to 32 wireless or bus devices, 32 user codes and up to 4 areas. Suitable for apartments, family houses and small businesses with remote management via MyJABLOTRON.

More details

Data sheet

Zones 32
Number of users 32
Sections 4
PG outputs 4
ARC 5
BUS connection terminal 1
LAN YES
Radio modul YES

More info

Overview

JA-100KR is a compact control panel from the JABLOTRON 100+ family that combines a built-in LAN communicator with the JA-111R radio module. It is intended for apartments, family houses and small commercial premises requiring reliable protection and wireless peripheral support.

Main features

  • Support for up to 32 wireless or bus devices.
  • Up to 32 user codes and up to 4 separate areas (sections).
  • Up to 4 programmable PG outputs and 10 independent schedules.
  • SMS and voice reporting with an optional GSM communicator (e.g. JA-190Y) to up to 8 users.
  • Support for up to 5 ARC monitoring stations and 5 selectable ARC protocols.

The integrated LAN enables connection to the MyJABLOTRON cloud and remote management. System configuration and sizing are done via the F-Link software; installation and commissioning must be performed by a certified Jablotron installer.

Technical notes: compact enclosure 268 × 225 × 83 mm; mains supply 230 V with provision for a backup battery 12 V / 2.6 Ah (battery not included). Operating temperature range −10 °C to +40 °C. The panel complies with applicable EN standards for alarm systems.

JA-100KR is a practical choice when a reliable, remotely manageable alarm panel with wireless support and ARC connectivity is required for homes and small sites.

Download

EU certifikat JA-100K

Download (1.53M)

DoC Deklaracija o sukladnosti

Download (146.85k)

Test report JA-100K

Download (236.71k)
