> >>>>Keypad with RFID JA-110E
Keyboard with RFID reader, display, BUS JA-110E View larger
Previous Next

Keypad with RFID JA-110E

JA-110E

New product

JABLOTRON ALARMS S.A.

BUS keypad for Jablotron 100/100+ with LCD, four function keys and integrated 125 kHz RFID reader. Addressable device powered and communicating via the control panel BUS (9–15 V).

More details

Data sheet

Connection method BUS

More info

Keypad JA-110E

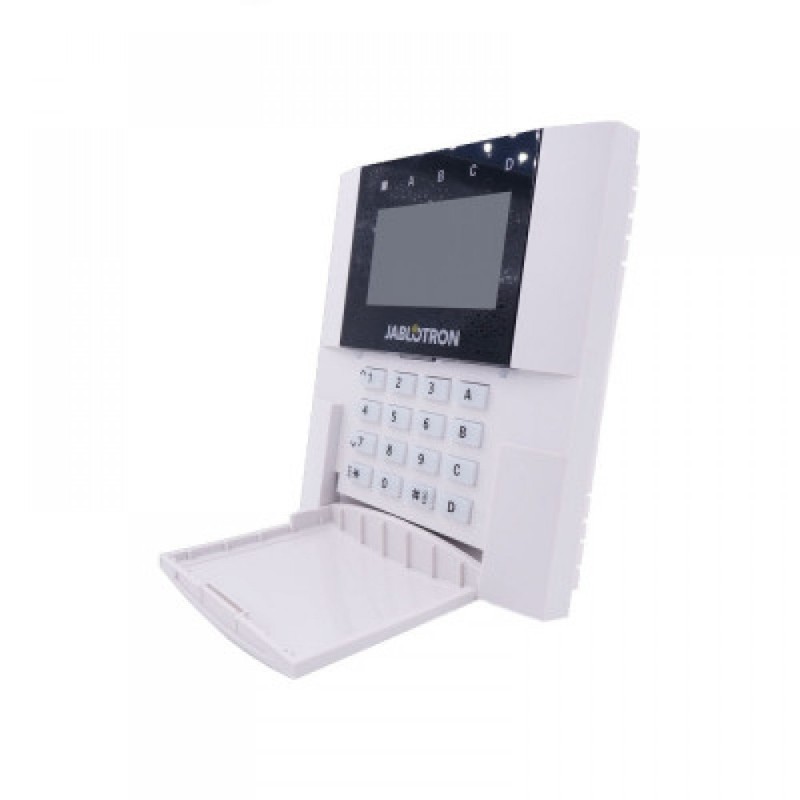

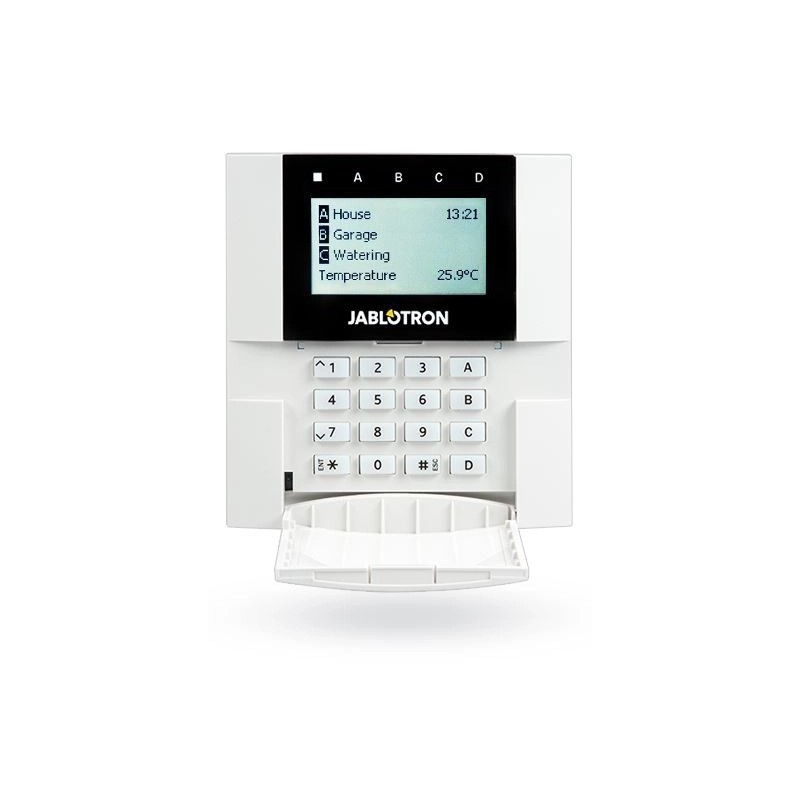

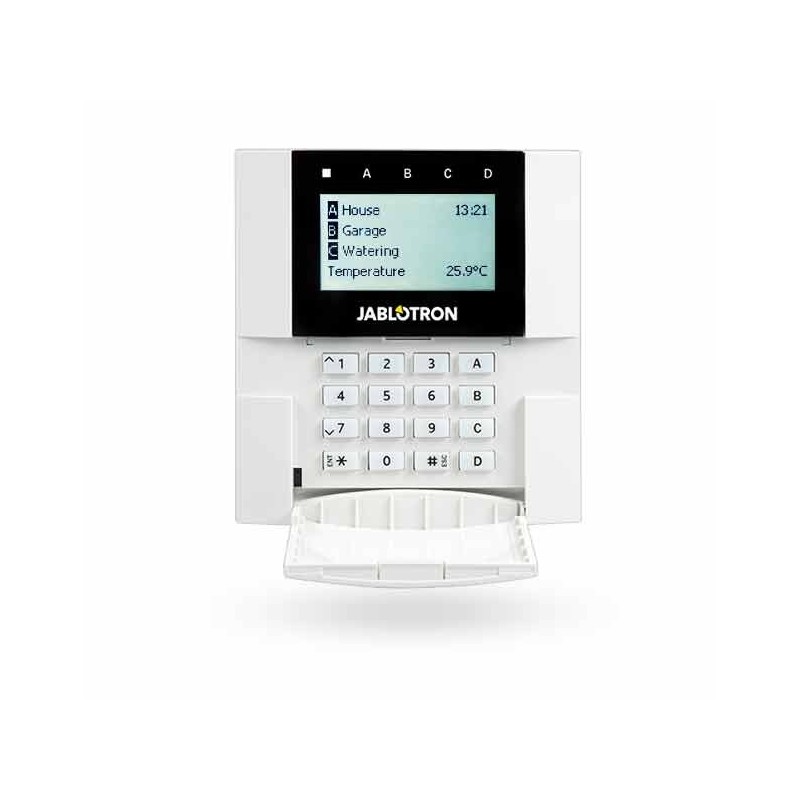

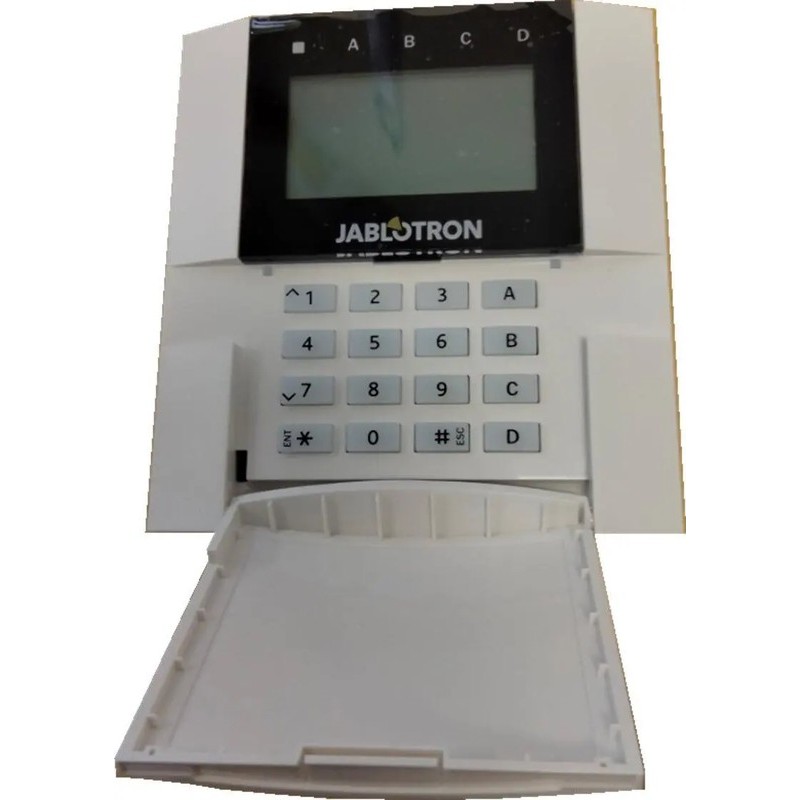

JA-110E is a BUS keypad with an LCD display and integrated 125 kHz RFID reader, designed for control of Jablotron 100/100+ alarm and SmartHome functions. The keypad is addressable and occupies one position on the system BUS; it is powered and communicates solely via the control panel digital BUS (9…15 V).

The unit combines navigation and control keys with four programmable function keys that also act as system status indicators. The user-friendly menu allows management of users and detectors and browsing of event history. JA-110E provides a wired input for a magnetic contact and supports control of sections, PG outputs and other system features.

  • Power: from control panel digital bus (9…15 V)
  • Nominal current consumption (standby): 30 mA
  • Current for cable selection: 110 mA
  • RFID frequency: 125 kHz
  • Size: 120 x 130 x 30 mm
  • Weight: 217 g
  • Operating temperature: -10 °C to +40 °C
  • Classification: Grade 2 (if selected in F-Link SW)

The device is intended for indoor use (EN 50131-1 II) and complies with relevant EMC and safety standards. JA-110E is suitable for professional installations requiring a compact, BUS-powered keypad with RFID access and clear local control of alarm and SmartHome functions.

Download

Europski certifikat JA-110E

Download (1.53M)

Dekl. o sukladnosti JA-110E

Download (170.67k)

Tehnička specifikacija JA-110E

Download (165.6k)

Uputa proizvođača JA-110E

Download (1.2M)
