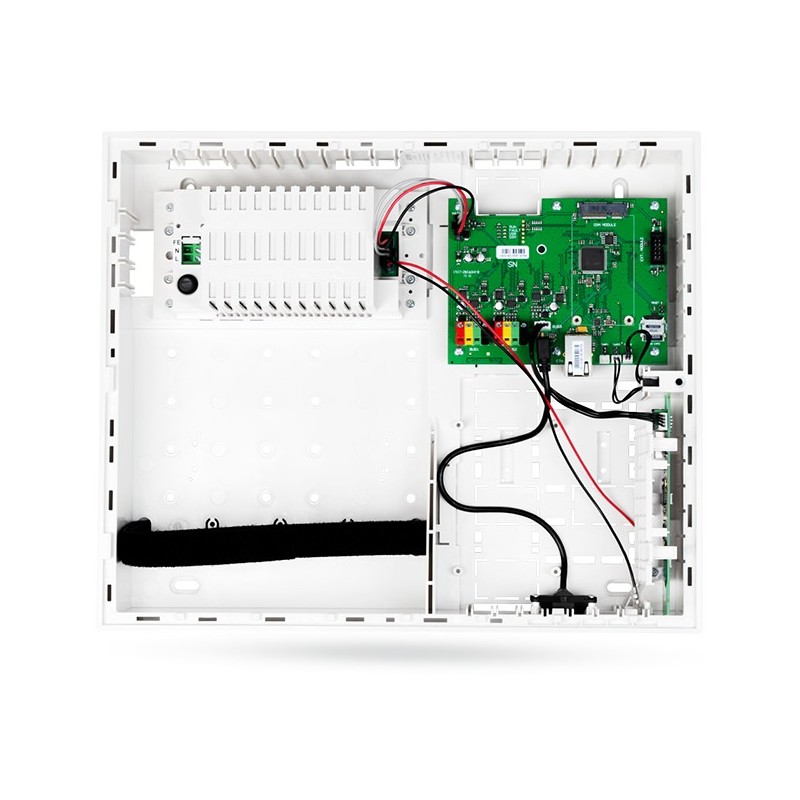

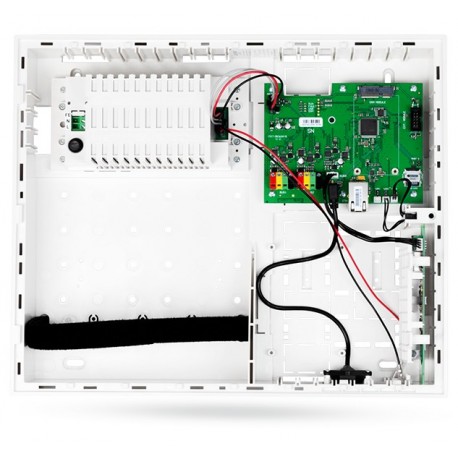

JA-107KR Control panel
The JA-107KR is an advanced JABLOTRON 100+ control panel for large residential complexes, offices and commercial sites. It supports multi‑section installations and extensive device capacity. Configuration is done in F‑Link (from v2.0.0).
More info
The JA-107KR is an advanced control panel from the JABLOTRON 100+ family designed for reliable protection of large residential, administrative and commercial sites. It provides scalable security management with multi‑section support and a high capacity for users and outputs.
The JA-107KR control panel offers:
- 120 wireless and up to 230 bus devices
- 600 users
- 15 sections
- 128 programmable PG outputs
- 64 mutually independent calendar events
- 50 user SMS reports and 15 user voice reports
- Support for up to 5 ARCs and 5 selectable ARC protocols
Connectivity and expansion
- Two mutually independent terminal boards for bus connection
- Connector for built‑in radio module (JA-111R) or third terminal board (expandable with JA-110Z‑D)
- Connector for GSM/GPRS communicator (JA-192Y)
Functions
- Maintenance
- Day/night mode
- Short departure response
- Automatic setting
- Advanced calendar features
Compatibility
The following products are not compatible with this panel: JA-180A (wireless outdoor siren), JA-154J (bi‑directional remote control), JA-190X (PSTN communicator module).
The following products are compatible under certain conditions:
- JA-112E (keyboard) – compatible with FW LU61501 and higher
- JA-113E (keyboard) – compatible with FW LU61601 and higher
- JA-118N (PG Bus Output Module) – compatible with LY68003 and higher; FW LY68002 and lower works only if the PG range in F‑Link is set to a maximum value of 32
- JA-110I (section or PG bus indicator) – compatible only when PG range in F‑Link is set to a maximum value of 32
Installation must be performed only by trained technicians holding a valid Jablotron Alarms certificate.
