Wirelss access module JA-153E

JA-153E

New product

JABLOTRON ALARMS S.A.

Two-way wireless keypad module with an integrated 125 kHz RFID reader for Jablotron 100+. Supports up to 20 additional JA-192E control segments, features Smart Radio Wake-up (SRW) and is powered by 2x AA batteries (typ. 1–2 years).

More details

Data sheet

Connection method Wireless

More info

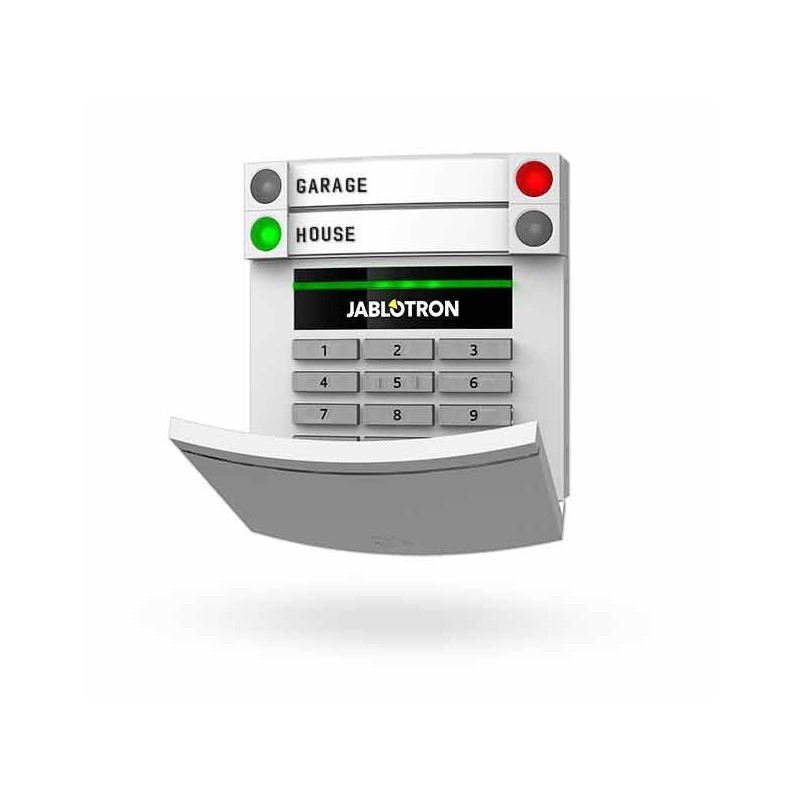

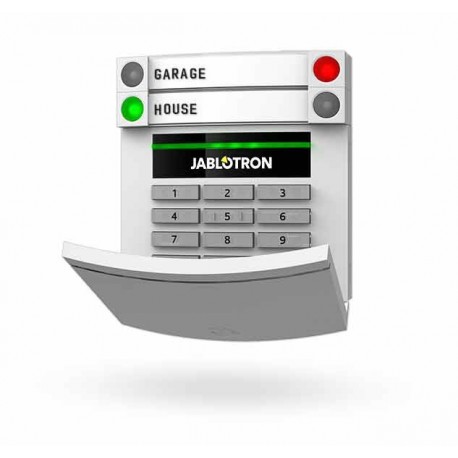

JA-153E wireless keypad with RFID

The JA-153E is a two-way wireless access module combining a numeric keypad and an integrated 125 kHz RFID reader to control Jablotron 100+ alarm and SmartHome systems. It provides local operation, user authorization and segment status indication via addressable segments.

The unit occupies one operating segment and can be expanded with up to 20 JA-192E control segments. Segments allow separate arming/disarming of areas, status checks and activation of programmable outputs directly from the keypad.

Smart Radio Wake-up (SRW) enables the module to automatically exit sleep mode during an entrance delay (for example when a wireless door detector is triggered), balancing battery life and responsiveness. The module is addressable and occupies one system position.

Key features & technical data:

  • Power: 2 x AA (LR6) alkaline batteries; batteries not included.
  • Typical battery life: 1–2 years (depending on usage and settings).
  • Communication band: 868.1 MHz, JABLOTRON protocol.
  • Range (open area): approx. 200 m.
  • External input power: 0.5 W.
  • RFID: integrated 125 kHz reader.
  • Dimensions: 102 x 75 x 33 mm; weight: 200 g.
  • Security grade: Grade II. Standards: EN 50131-1, EN 50131-3, EN 50131-5-3 and other applicable norms (ETSI EN 300 330, ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1, ERC REC 70-03).
  • Operating temperature: -10 °C to +40 °C.

JA-153E is suitable for entrances and areas without mains power where a compact, battery-powered access and control interface is required. Its SRW function and addressability simplify installation and ensure reliable authorized access within Jablotron 100+ system architecture.

Download

Europski certifikat JA-153E

Download (1.53M)

Dekl. o sukladnosti JA-153E

Download (169.84k)

Tehnička specifikacija JA-153E

Download (163.71k)

Uputa proizvođača JA-153E

Download (1.24M)
