> >>>JA-100K Control panel

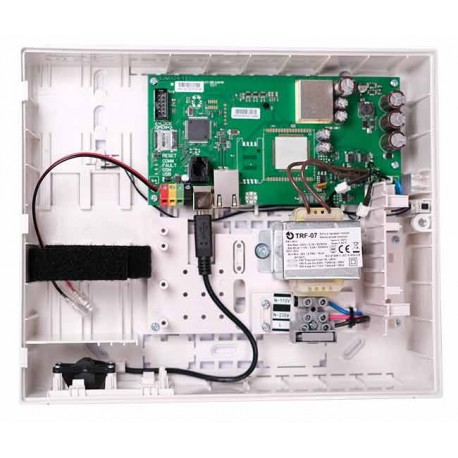

JAB Alarmna centrala sa LAN komunikatorom JA-100K View larger

JA-100K Control panel

JA-100K

New product

JABLOTRON ALARMS S.A.

The JA-100K is a compact JABLOTRON 100+ control panel with an integrated LAN communicator, designed for apartments and family houses. It supports up to 32 wireless or bus devices, 32 user codes and up to 4 partitions. MyJABLOTRON cloud and optional GSM reporting are supported.

More details

Data sheet

Zones 32
Number of users 32
Sections 4
PG outputs 4
ARC 5
BUS connection terminal 1
LAN YES
Radio modul NE

More info

Overview

JA-100K is the smallest control panel in the JABLOTRON 100+ range, intended for small residential and similar installations. The built-in LAN communicator enables connection to Alarm Receiving Centres (ARCs) and the JABLOTRON CLOUD and allows full use of the MyJABLOTRON mobile application.

Main features

  • up to 32 wireless or bus devices
  • up to 32 user codes
  • up to 4 partitions (sections)
  • up to 4 programmable PG outputs
  • 10 independent schedules
  • support for up to 5 ARCs and five selectable ARC protocols
  • SMS and voice reporting with optional JA-190Y GSM module (to up to 8 users)

Accessories and power

The panel includes a connector for the JA-111R radio module (868 MHz) to operate Jablotron wireless devices. Backup power requires one SA214-2.6 battery (12 V, up to 2.6 Ah); battery is not supplied with the unit.

Security and installation

Data transmission uses the JABLOTRON protocol with AES encryption. JA-100K is intended for professional installation; programming and commissioning should be performed by a certified installer using the F‑Link tool. The unit supports ARC and cloud integration for monitoring and management.

Physical and operational data

Dimensions: 268 × 225 × 83 mm; weight ≈ 1,450 g. LAN: RJ‑45 (CAT5). The system keeps an extensive event history with date/time stamps.

JA-100K is suitable for reliable basic alarm installations that require LAN connectivity, wireless device support and optional GSM reporting.

Download

EU certifikat JA-100K

Download (1.53M)

DoC Deklaracija o sukladnosti

Download (146.85k)
