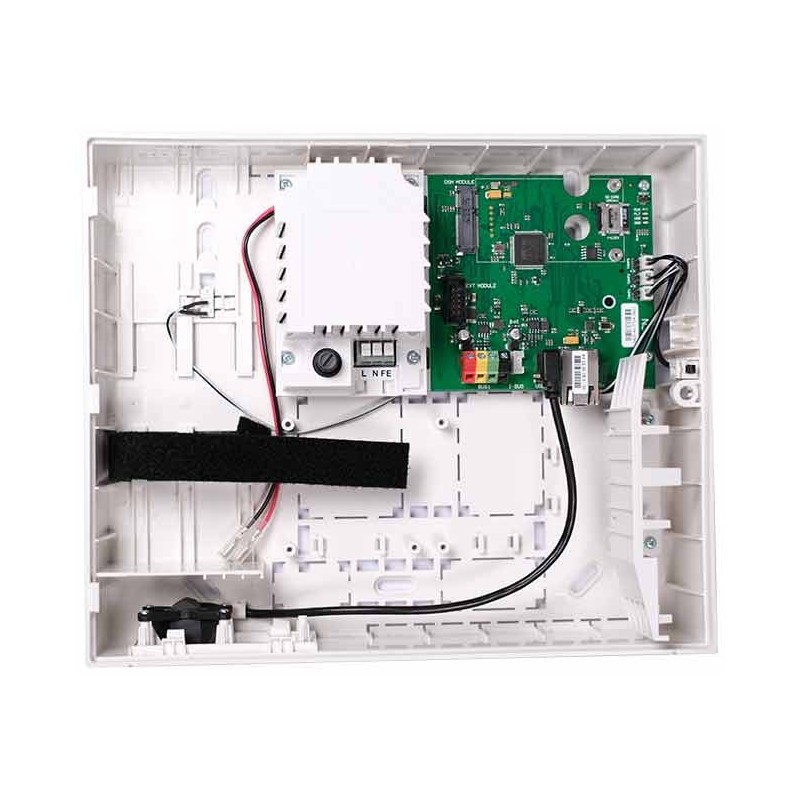

> >>>JA-103K Control panel

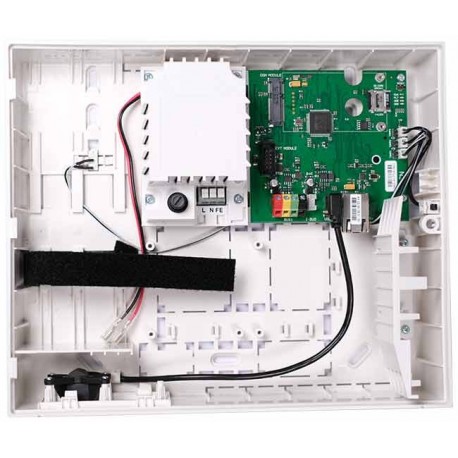

JAB Alarmna centrala sa LAN komunikatorom JA-103K View larger

JA-103K Control panel

JA-103K

New product

JABLOTRON ALARMS S.A.

JA-103K is a JABLOTRON 100+ control panel with onboard LAN communicator and radio front-end. Supports up to 50 wireless or bus devices, 50 users, 8 sections and 32 programmable PG outputs. Suited for homes, offices and small businesses.

More details

Data sheet

Zones 50
Number of users 50
Sections 8
PG outputs 32
ARC 5
BUS connection terminal 1
LAN YES
GSM/3G GPSR YES/OPT
Radio modul NE

More info

Overview

The JA-103K is a control panel from the JABLOTRON 100+ range with an integrated LAN communicator and radio front-end. It provides combined wired and wireless connectivity for medium-sized installations in homes, offices and small commercial premises.

Main features

  • Support for up to 50 wireless or bus devices
  • 50 user codes and 8 sections
  • 32 programmable PG outputs
  • 20 independent calendar events
  • 8 user SMS and voice reports
  • Configuration for up to 5 ARCs and 5 selectable ARC protocols

Connectivity and extensions

The panel includes an onboard LAN communicator (Ethernet 10/100), a terminal board for BUS connection, a connector for the built-in radio module JA-111R and a connector for an external GSM/GPRS communicator JA-192Y (accessory). System sizing and parameter changes are performed via F-Link software (from version 2.0.0).

Compatibility notes

Check firmware versions and F-Link settings before design and commissioning. The following devices are not supported: JA-180A, JA-154J, JA-190X. Some peripherals are supported only under specific firmware or F-Link PG-range settings: JA-112E requires FW LU61501 or later; JA-113E requires FW LU61601 or later; JA-118N is compatible from LY68003 upward (LY68002 and lower work only if the PG range in F-Link is limited to a maximum of 32); JA-110I is compatible only when the PG range in F-Link is limited to a maximum of 32.

Standards and logging

JA-103K is designed for professional installations and complies with applicable EN standards for intruder alarm systems. The panel maintains a comprehensive event log to support diagnostics and traceability.

Recommendation

Note: Verify firmware revisions and PG range settings in F-Link prior to final configuration, since some modules require specific firmware or PG-range limits to operate correctly.

Download

JA-103K- EU- dekl. o sukladnosti

Download (146.86k)

JA-103K- Teh specifikacija

Download (236.46k)

JA-103K- EU certifikat

Download (1.53M)
