> >>>>JAB Bežični univerzalni odašiljač JA-150TX-UNI

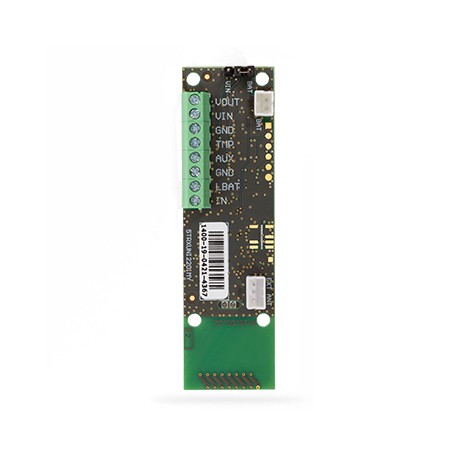

New JAB wireless universal transmitter JA-150TX-UNI for integrating third‑party detectors into a JABLOTRON system. View larger

JAB Bežični univerzalni odašiljač JA-150TX-UNI

JA-150TX-UNI

New product

The Jablotron JA-150TX-UNI is a compact wireless universal transmitter for installing inside third‑party detectors to integrate them into Jablotron systems. Inputs IN/TMP/LBAT/AUX, power from CR123A or 3–10 V DC, configurable via F‑Link, range up to 300 m (open area).

More details

More info

Jablotron JA-150TX-UNI is a compact wireless universal transmitter designed for installation inside third‑party detectors to fully integrate them into JABLOTRON alarm systems. It reports alarm, tamper, low‑battery and auxiliary signals and can supply a connected detector via the VOUT output.

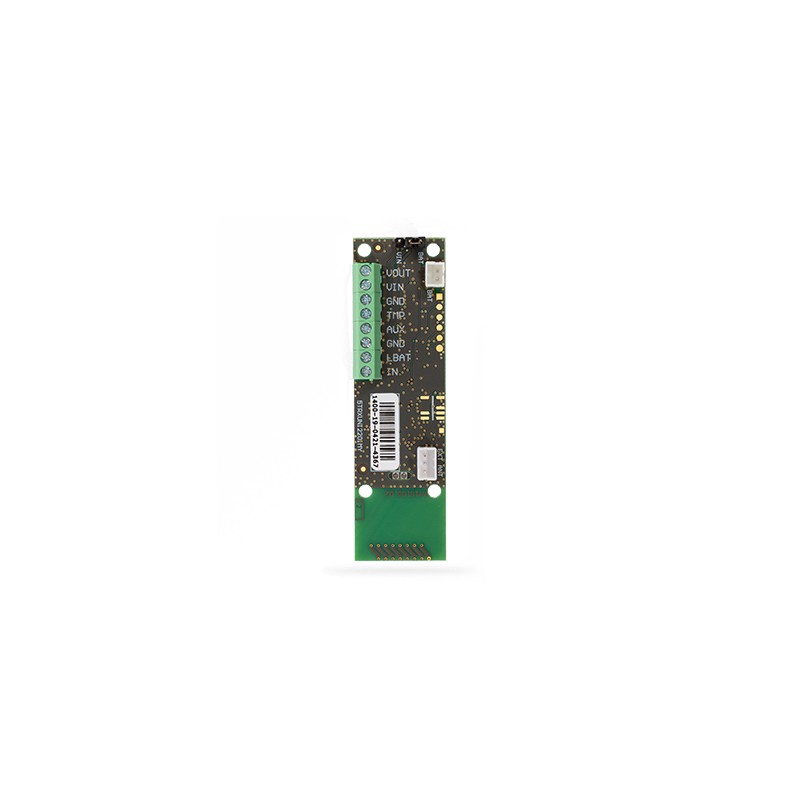

The unit provides terminals for IN (alarm), TMP (tamper), LBAT (low battery) and AUX (fault/antimasking). It can be powered from a CR123A battery in the JA-BAT-UNI holder or from an external 3–10 V DC source on VIN/GND. Maximum recommended cable length between detector and transmitter inputs is 3 m.

An external 3‑pin antenna (AN-868) can be connected to improve RF range. All device parameters (input logic NO/NC, input blocking, AUX behaviour, etc.) are remotely configurable using the F‑Link tool, reducing the need for mechanical switches on the module.

Typical applications include retrofitting wired PIRs, beam sensors and other detectors for wireless operation within a Jablotron system or when a detector lacks an integrated radio module. Installation and configuration should be performed by a certified technician.

Key technical specifications

  • Power: 1× CR123A (3.0 V/1.4 Ah) in JA-BAT-UNI or 3–10 V DC to VIN/GND
  • Quiescent current: 24 µA; max current: 50 mA
  • RF: 868.1 MHz (JABLOTRON protocol), ERP 25 mW; range up to 300 m (open area)
  • Dimensions: 80 × 22 × 12 mm; weight (without battery): 11 g
  • Operating temperature: −10 °C to +40 °C; Security grade: 2
